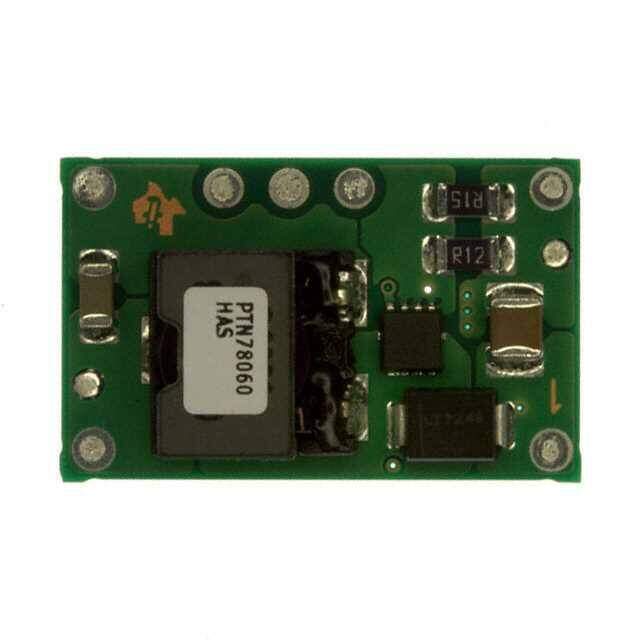

PTN78060HAS

Texas Instruments
RoHS
/
Package 7-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 11.85-22V
PDF
/
Buying Options
Total Price: USD $131.87
Unit Price: USD $131.8657
≥1 USD $131.8657
≥10 USD $127.471
≥100 USD $114.28405
Inventory: 467
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Thickness 8.75mm
Height 9mm

Technical

Isolation Non-Isolated
Switching Frequency-Max 660kHz
Switcher Configuration BUCK
Min Output Voltage 11.85V
Current - Output 1 3A
Control Technique PULSE WIDTH MODULATION
Max Output Voltage 22V
Output Power 45W
Output Current 3A
Input Voltage-Nom 20V
Voltage - Input (Min) 15V
Voltage - Output 1 11.85V~22V
Max Output Current 3A
Output Voltage 22V
Voltage - Input (Max) 36V
Efficiency 96%
Number of Outputs 1
Pin Count 7
Base Part Number PTN78060
Depth 15.75mm
Number of Functions 1
Terminal Form BALL
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 66W
HTS Code 8504.40.95.80
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
Size / Dimension 1.00Lx0.62W x 0.38 H 25.4mmx15.7mmx9.7mm
Series PTN78060H
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Number of Pins 7
Surface Mount YES
Package / Case 7-SMD Module
Mounting Type Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 8 Weeks
