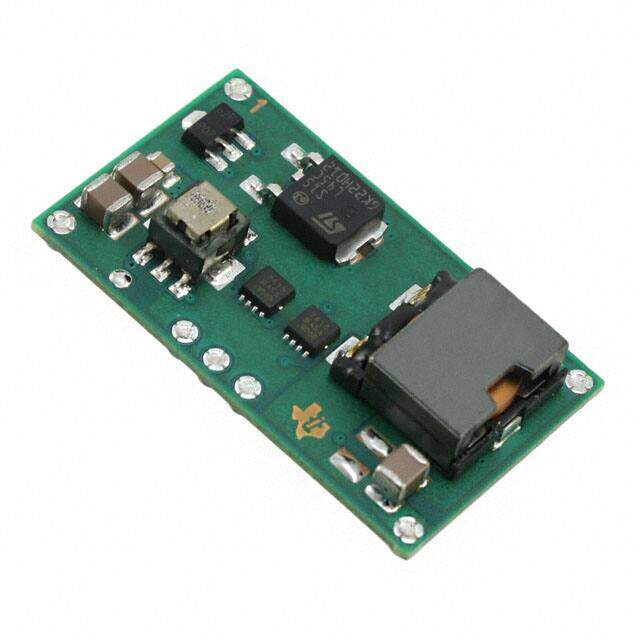

PTN78020WAZT
RoHS
RoHS compliant
RoHS compliantPackage 7-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG SW WIDE-VIN 6A ADJ HORZ SMD
PDF
/
Inventory: 9127
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.75mm
Height 9mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 660kHz
Switcher Configuration BUCK
Min Output Voltage 2.5V
Current - Output 1 6A
Control Technique PULSE WIDTH MODULATION
Max Output Voltage 12.6V
Output Power 90W
Output Current 6A
Input Voltage-Nom 20V
Voltage - Input (Min) 7V
Voltage - Output 1 2.5V~12.6V
Max Output Current 6A
Output Voltage 12.6V
Voltage - Input (Max) 36V
Efficiency 94%
Number of Outputs 1
Pin Count 7
Base Part Number PTN78020
Depth 22.1mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 76W
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e1
Size / Dimension 1.50Lx0.87W x 0.38 H 38.1mmx22.1mmx9.7mm
Series PTN78020W
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 7
Surface Mount NO
Package / Case 7-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 6 Weeks
Alternative Model
