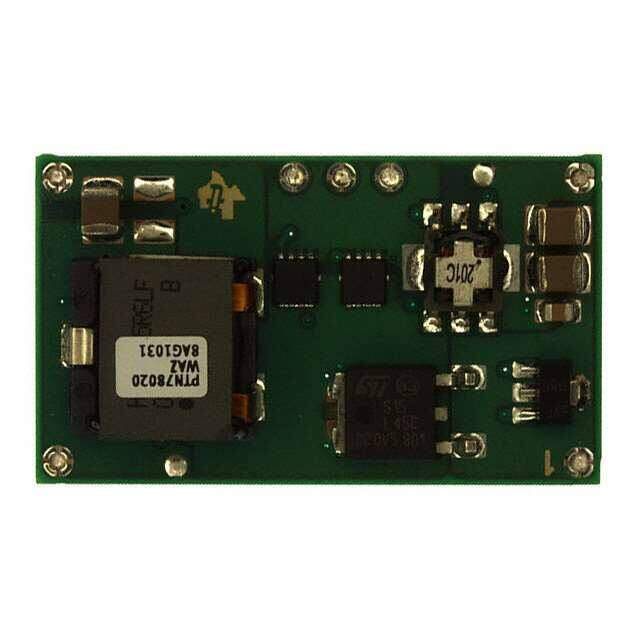

PTN78020HAZ
RoHS
RoHS compliant
RoHS compliantPackage 7-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 11.85-22V
PDF
/
Buying Options
Total Price: USD $22.61
Unit Price: USD $22.6072
≥1 USD $22.6072
≥10 USD $22.43296
≥100 USD $22.2596
≥500 USD $20.86854
≥1000 USD $19.129554
≥3000 USD $18.781734
Inventory: 89
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mounting Type Surface Mount
Package / Case 7-SMD Module
Surface Mount NO
Number of Pins 7
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTN78020H
Size / Dimension 1.50Lx0.87W x 0.38 H 38.1mmx22.1mmx9.7mm
JESD-609 Code e1
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 7
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
HTS Code 8504.40.95.80
Max Power Dissipation 132W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Depth 22.1mm
Frequency 550kHz
Base Part Number PTN78020
Pin Count 7
Number of Outputs 1
Efficiency 96%
Output Voltage 22V
Max Output Current 6A
Voltage - Output 1 11.85V~22V
Input Voltage-Nom 20V
Output Current 6A
Output Power 90W
Max Output Voltage 22V
Control Technique PULSE WIDTH MODULATION
Current - Output 1 6A
Min Output Voltage 11.85V
Switcher Configuration BUCK
Max Output Power 90W
Isolation Non-Isolated
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 15V
Dimensions
Height 9mm
Thickness 8.75mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
