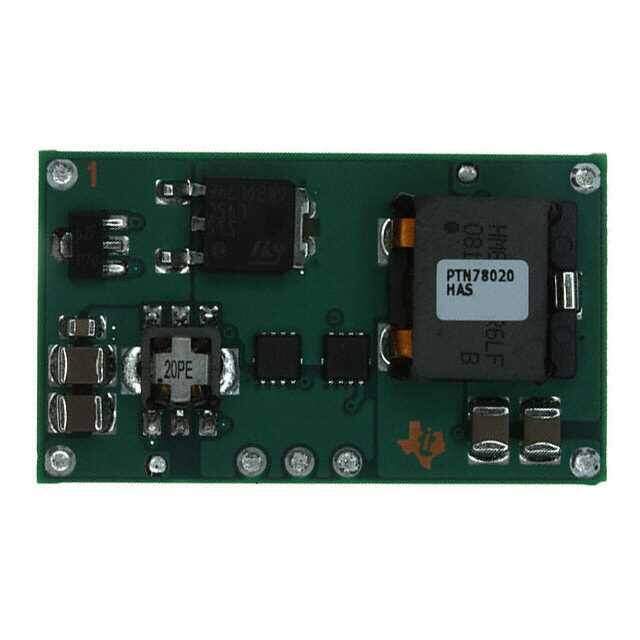

PTN78020HAST
RoHS
RoHS compliant
RoHS compliantPackage 7-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG SW WIDE-VIN 6A ADJ HORZ SMD
PDF
/
Inventory: 2634
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 9.652mm
Technical
Min Output Voltage 11.85V
Current - Output 1 6A
Max Output Voltage 22V
Output Power 90W
Output Current 6A
Voltage - Input (Min) 15V
Voltage - Output 1 11.85V~22V
Max Output Current 6A
Output Voltage 22V
Voltage - Input (Max) 36V
Efficiency 96%
Number of Outputs 1
Pin Count 7
Base Part Number PTN78020
Number of Functions 1
Peak Reflow Temperature (Cel) 235; 260
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 132W
Applications ITE (Commercial)
Terminal Finish TIN LEAD
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e0
Size / Dimension 1.50Lx0.87W x 0.38 H 38.1mmx22.1mmx9.7mm
Series PTN78020H
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 7
Surface Mount NO
Package / Case 7-SMD Module
Mounting Type Surface Mount
Alternative Model
