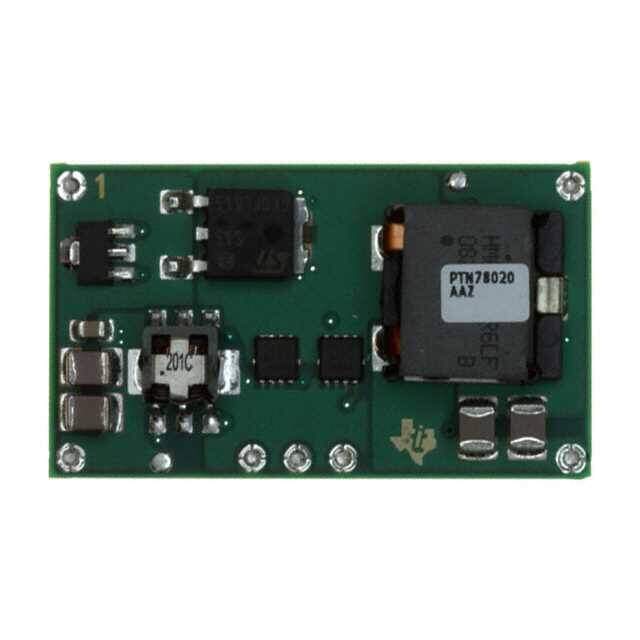

PTN78020AAZT
RoHS
RoHS compliant
RoHS compliantPackage 7-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG SW POS-NEG ADJ 25W HORZ SMD
PDF
/
Buying Options
Total Price: USD $308.4
Unit Price: USD $308.39565
≥1 USD $308.39565
≥10 USD $276.49275
Inventory: 509
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.75mm
Height 9mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 660kHz
Min Output Voltage -15V
Current - Output 1 4A
Control Technique PULSE WIDTH MODULATION
Topology Boost
Max Output Voltage -3V
Output Power 25W
Output Current 4A
Input Voltage-Nom 20V
Voltage - Input (Min) 9V
Voltage - Output 1 -15V~-3.3V
Max Output Current 4A
Output Voltage -3V
Voltage - Input (Max) 29V
Efficiency 87%
Number of Outputs 1
Base Part Number PTN78020
Depth 22.1mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 25W
Power Rating 25W
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature OCP, OTP, UVLO
JESD-609 Code e1
Size / Dimension 1.50Lx0.87W x 0.38 H 38.1mmx22.1mmx9.7mm
Series PTN78020A (25W)
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 7
Surface Mount NO
Package / Case 7-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 8 Weeks
Alternative Model
