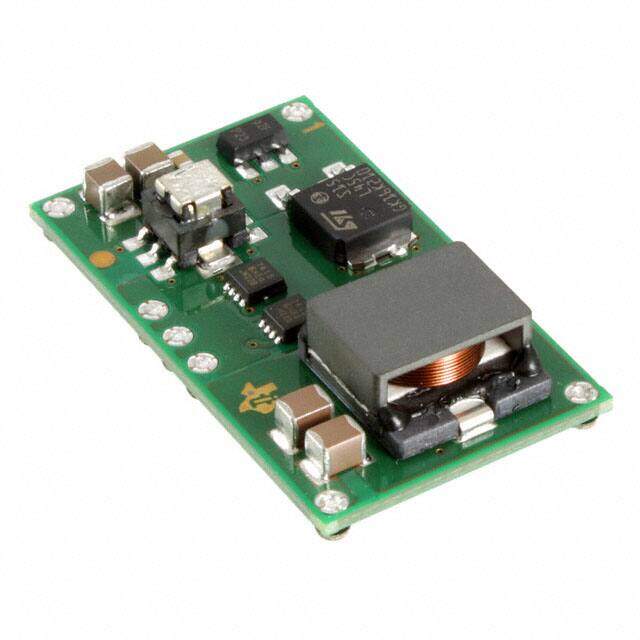

PTN78020AAS

Texas Instruments
RoHS
/
Package 7-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description 4 A, Wide Input, Non-Isolated, Wide Negative Output Adjust Module 7-Surface Mount Module -40 to 85
PDF
/
Buying Options
Total Price: USD $26.16
Unit Price: USD $26.1624
≥1 USD $26.1624
≥10 USD $25.95824
≥100 USD $25.75672
≥500 USD $24.14698
≥1000 USD $22.13464
≥3000 USD $21.732225
Inventory: 35
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Thickness 8.75mm
Height 9mm

Technical

Isolation Non-Isolated
Switching Frequency-Max 660kHz
Min Output Voltage -15V
Current - Output 1 4A
Control Technique PULSE WIDTH MODULATION
Topology Boost
Max Output Voltage -3V
Output Power 25W
Output Current 4A
Input Voltage-Nom 20V
Voltage - Input (Min) 9V
Voltage - Output 1 -15V~-3V
Max Output Current 4A
Output Voltage -3V
Voltage - Input (Max) 29V
Efficiency 87%
Number of Outputs 1
Base Part Number PTN78020
Depth 22.1mm
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 25W
Power Rating 25W
HTS Code 8504.40.95.80
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature OCP, OTP, UVLO
Size / Dimension 1.50Lx0.87W x 0.38 H 38.1mmx22.1mmx9.7mm
Series PTN78020A (25W)
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Number of Pins 7
Surface Mount NO
Package / Case 7-SMD Module
Mounting Type Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 8 Weeks
