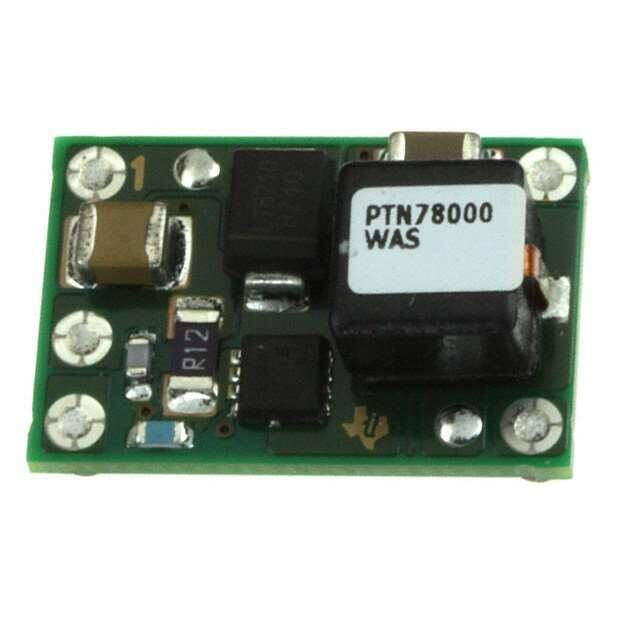

PTN78000WAST
RoHS
RoHS compliant
RoHS compliantPackage 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 2.5-12.6V
PDF
/
Buying Options
Total Price: USD $10.61
Unit Price: USD $10.605606
≥1 USD $10.605606
Inventory: 3287
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Mounting Type Surface Mount
Package / Case 5-SMD Module
Surface Mount YES
Number of Pins 5
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series PTN78000W
Size / Dimension 0.75Lx0.50W x 0.36 H 19.1mmx12.7mmx9.1mm
JESD-609 Code e0
Feature OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Lead (Sn/Pb)
Applications ITE (Commercial)
Max Power Dissipation 18.9W
Terminal Position DUAL
Terminal Form BALL
Number of Functions 1
Depth 12.57mm
Base Part Number PTN78000
Number of Outputs 1
Efficiency 91%
Voltage - Input (Max) 36V
Output Voltage 12.6V
Max Output Current 1.5A
Voltage - Output 1 2.5V~12.6V
Voltage - Input (Min) 7V
Input Voltage-Nom 20V
Output Current 1.5A
Output Power 22.5W
Max Output Voltage 12.6V
Control Technique PULSE WIDTH MODULATION
Current - Output 1 1.5A
Min Output Voltage 2.5V
Switcher Configuration BUCK
Switching Frequency-Max 660kHz
Isolation Non-Isolated
Dimensions
Height 8.5mm
Thickness 8.25mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
