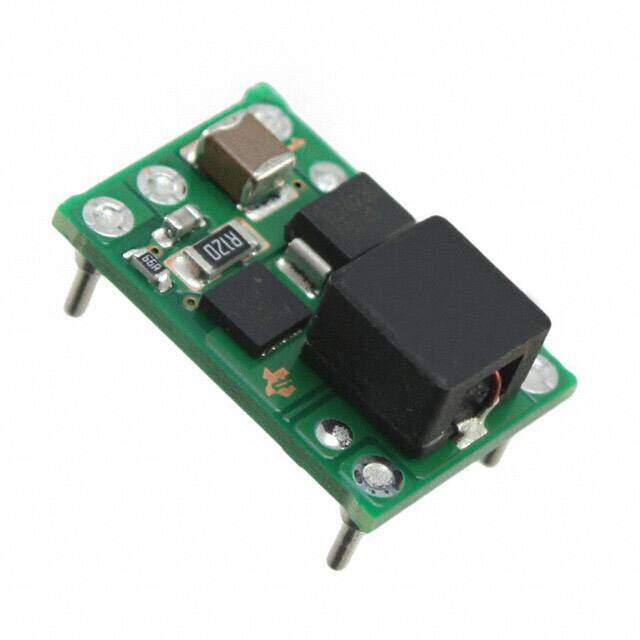

PTN78000WAH

Texas Instruments
RoHS
RoHS RoHS compliant
Package 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 2.5-12.6V
PDF
/
Buying Options
Total Price: USD $13.84
Unit Price: USD $13.8424
≥1 USD $13.8424
≥10 USD $13.73328
≥100 USD $13.62856
≥500 USD $13.418592
≥1000 USD $12.999483
≥3000 USD $11.7414
Inventory: 655
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Thickness 8.25mm
Height 8.5mm

Technical

Min Input Voltage (DC) 7V
Max Input Voltage (DC) 36V
Isolation Non-Isolated
Max Output Power 22.5W
Switcher Configuration BUCK
Min Output Voltage 2.5V
Current - Output 1 1.5A
Control Technique PULSE WIDTH MODULATION
Max Output Voltage 12.6V
Output Power 22.5W
Output Current 1.5A
Input Voltage-Nom 20V
Voltage - Output 1 2.5V~12.6V
Max Output Current 1.5A
Output Voltage 12.6V
Efficiency 91%
Number of Outputs 1
Base Part Number PTN78000
Frequency 550kHz
Depth 12.57mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Max Power Dissipation 18.9W
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature UVLO
JESD-609 Code e3
Size / Dimension 0.75Lx0.50W x 0.34 H 19.1mmx12.7mmx8.6mm
Series PTN78000W
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Number of Pins 5
Surface Mount NO
Package / Case 5-DIP Module
Mounting Type Through Hole
Contact Plating Tin

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 8 Weeks
