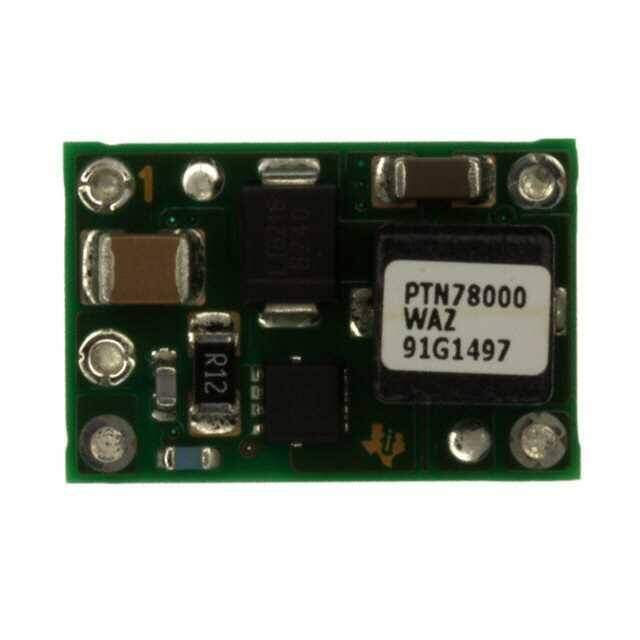

PTN78000HAZT
RoHS
RoHS compliant
RoHS compliantPackage 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 11.85-22V
PDF
/
Inventory: 3563
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 5-SMD Module
Surface Mount NO
Number of Pins 5
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series PTN78000H
Size / Dimension 0.75Lx0.50W x 0.36 H 19.1mmx12.7mmx9.1mm
JESD-609 Code e1
Feature OCP, OTP, UVLO
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 5
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish TIN SILVER COPPER
Applications ITE (Commercial)
Max Power Dissipation 33W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Base Part Number PTN78000
Pin Count 5
Number of Outputs 1
Efficiency 94%
Voltage - Input (Max) 36V
Output Voltage 22V
Max Output Current 1.5A
Voltage - Output 1 11.85V~22V
Voltage - Input (Min) 15V
Output Current 1.5A
Output Power 22.5W
Max Output Voltage 22V
Current - Output 1 1.5A
Min Output Voltage 11.85V
Dimensions
Height 9.144mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
