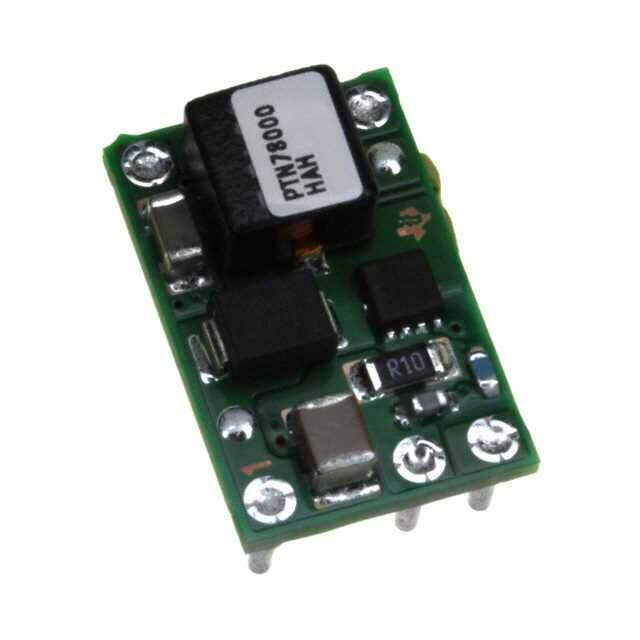

PTN78000HAH
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC Power Supply Single Output 11.85 Volt to 22 Volt 1.5A 5-Pin DIP Module
PDF
/
Buying Options
Total Price: USD $12.3
Unit Price: USD $12.3024
≥1 USD $12.3024
≥10 USD $12.21088
≥100 USD $12.1176
≥500 USD $11.931392
≥1000 USD $11.558325
≥3000 USD $10.439862
Inventory: 185
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Plating Tin
Mounting Type Through Hole
Package / Case 5-DIP Module
Surface Mount NO
Number of Pins 5
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTN78000H
Size / Dimension 0.75Lx0.50W x 0.34 H 19.1mmx12.7mmx8.6mm
JESD-609 Code e3
Feature UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Power Rating 22.5W
Max Power Dissipation 33W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 12.57mm
Base Part Number PTN78000
Pin Count 5
Number of Outputs 1
Efficiency 94%
Output Voltage 22V
Max Output Current 1.5A
Voltage - Output 1 11.85V~22V
Input Voltage-Nom 20V
Output Current 1.5A
Output Power 22.5W
Max Output Voltage 22V
Control Technique PULSE WIDTH MODULATION
Current - Output 1 1.5A
Min Output Voltage 11.85V
Switcher Configuration BUCK
Max Output Power 22.5W
Switching Frequency-Max 660kHz
Isolation Non-Isolated
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 15V
Dimensions
Height 8.5mm
Thickness 8.25mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
