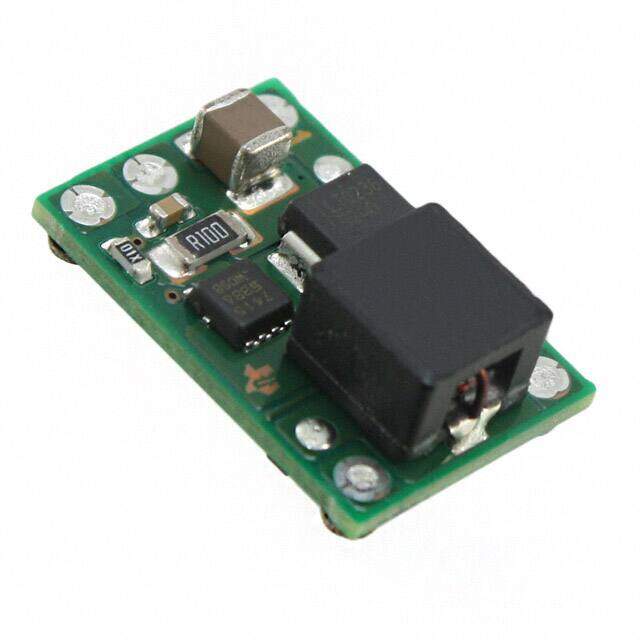

PTN78000AAS

Texas Instruments
RoHS
/
Package 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER -15 TO -3V
PDF
/
Buying Options
Total Price: USD $14.7
Unit Price: USD $14.696
≥1 USD $14.696
≥10 USD $14.58512
≥100 USD $14.47248
≥500 USD $14.246496
≥1000 USD $13.567981
≥3000 USD $12.437278
Inventory: 53
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Thickness 8.25mm
Height 8.5mm

Technical

Isolation Non-Isolated
Switching Frequency-Max 660kHz
Min Output Voltage -15V
Current - Output 1 1.5A
Topology Boost
Max Output Voltage -3V
Output Power 9W
Output Current 1.5A
Input Voltage-Nom 12V
Voltage - Input (Min) 7V
Voltage - Output 1 -15V~-3V
Max Output Current 1.5A
Output Voltage -3V
Voltage - Input (Max) 28.7V
Efficiency 84%
Number of Outputs 1
Pin Count 5
Base Part Number PTN78000
Depth 12.57mm
Number of Functions 1
Terminal Form BALL
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 9W
Applications ITE (Commercial)
Terminal Finish Tin/Lead (Sn/Pb)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OTP, UVLO
JESD-609 Code e0
Size / Dimension 0.75Lx0.50W x 0.36 H 19.1mmx12.7mmx9.1mm
Series PTN78000A
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Number of Pins 5
Surface Mount YES
Package / Case 5-SMD Module
Mounting Type Surface Mount
