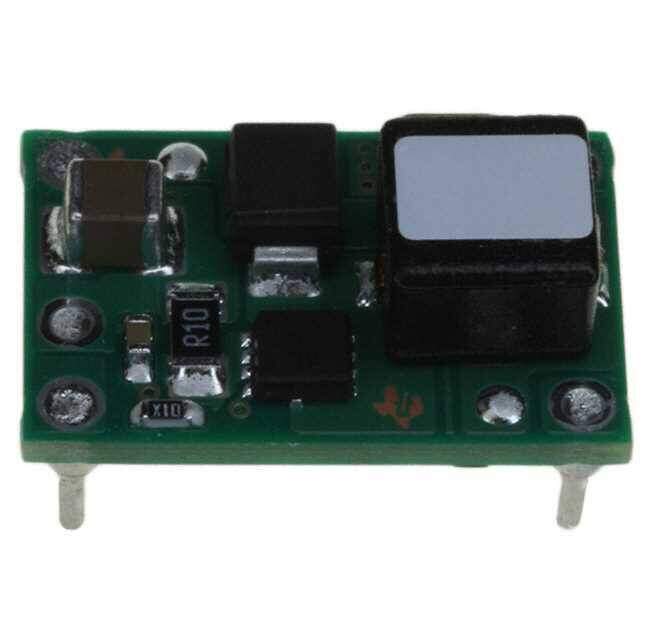

PTN78000AAH
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER -15 TO -3V
PDF
/
Buying Options
Total Price: USD $14.7
Unit Price: USD $14.696
≥1 USD $14.696
≥10 USD $14.58512
≥100 USD $14.47248
≥500 USD $14.246496
≥1000 USD $13.568025
≥3000 USD $12.437304
Inventory: 177
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 8.25mm
Height 8.5mm
Technical
Min Input Voltage (DC) 7V
Max Input Voltage (DC) 28.7V
Isolation Non-Isolated
Switching Frequency-Max 660kHz
Max Output Power 9W
Min Output Voltage -15V
Current - Output 1 1.5A
Topology Boost
Max Output Voltage -3V
Output Power 9W
Output Current 1.5A
Input Voltage-Nom 12V
Voltage - Output 1 -15V~-3V
Max Output Current 1.5A
Output Voltage -3V
Efficiency 84%
Number of Outputs 1
Pin Count 5
Base Part Number PTN78000
Depth 12.57mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 9W
Power Rating 9W
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.75Lx0.50W x 0.34 H 19.1mmx12.7mmx8.6mm
Series PTN78000A
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 5
Surface Mount NO
Package / Case 5-DIP Module
Mounting Type Through Hole
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 17 hours ago)
Factory Lead Time 6 Weeks
