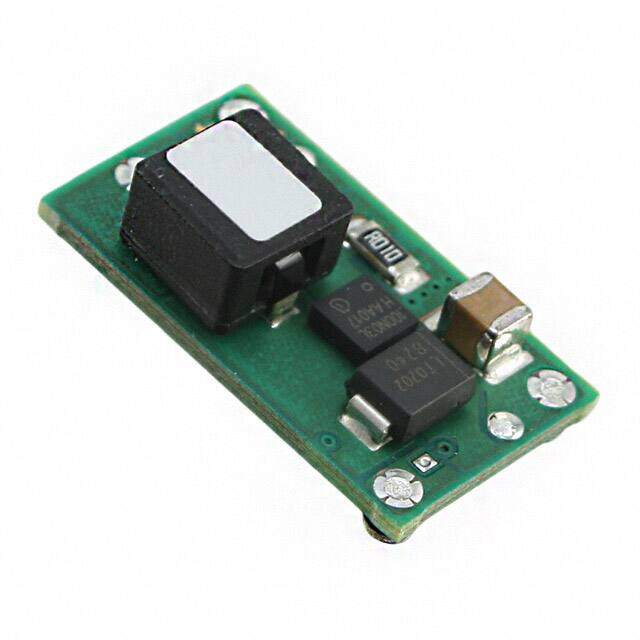

PTN04050CAST
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG SW POS-NEG 3.3V/5V 12W SMD
PDF
/
Buying Options
Total Price: USD $16.59
Unit Price: USD $16.59317
≥1 USD $16.59317
≥10 USD $15.653936
≥100 USD $14.767861
≥500 USD $13.931945
≥1000 USD $13.143343
Inventory: 1168
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 4-SMD Module
Surface Mount YES
Number of Pins 4
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series PTN04050C (12W)
Size / Dimension 0.87Lx0.50W x 0.36 H 22.1mmx12.7mmx9.1mm
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish TIN LEAD
Applications ITE (Commercial)
Max Power Dissipation 12W
Technology HYBRID
Terminal Position DUAL
Terminal Form BALL
Peak Reflow Temperature (Cel) 235; 260
Number of Functions 1
Base Part Number PTN04050
Pin Count 4
Number of Outputs 1
Efficiency 90%
Voltage - Input (Max) 5.5V
Output Voltage 15V
Max Output Current 2.4A
Voltage - Output 1 5V~15V
Voltage - Input (Min) 2.95V
Input Voltage-Nom 5V
Output Current 2.4A
Output Power 12W
Max Output Voltage 15V
Control Technique PULSE WIDTH MODULATION
Current - Output 1 2.4A
Min Output Voltage 5V
Switcher Configuration BOOST
Switching Frequency-Max 600kHz
Dimensions
Height 9.144mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
