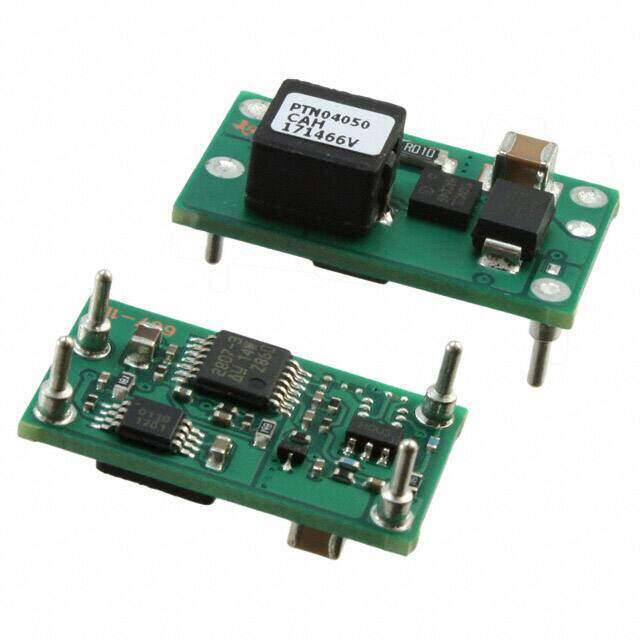

PTN04050CAH
RoHS
RoHS compliant
RoHS compliantPackage 4-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5-15V 2.4A
PDF
/
Buying Options
Total Price: USD $49.77
Unit Price: USD $49.76955
≥1 USD $49.76955
≥10 USD $40.8367
≥100 USD $39.5599
≥500 USD $38.28405
≥1000 USD $37.0082
Inventory: 389
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Plating Tin
Mounting Type Through Hole
Package / Case 4-DIP Module
Surface Mount NO
Number of Pins 4
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTN04050C (12W)
Size / Dimension 0.87Lx0.50W x 0.34 H 22.1mmx12.7mmx8.6mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Power Rating 12W
Max Power Dissipation 12W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 12.57mm
Base Part Number PTN04050
Pin Count 4
Number of Outputs 1
Efficiency 90%
Output Voltage 15V
Max Output Current 2.4A
Voltage - Output 1 5V~15V
Input Voltage-Nom 5V
Output Current 2.4A
Output Power 12W
Max Output Voltage 15V
Control Technique PULSE WIDTH MODULATION
Current - Output 1 2.4A
Min Output Voltage 5V
Switcher Configuration BOOST
Max Output Power 12W
Switching Frequency-Max 600kHz
Isolation Non-Isolated
Nominal Output Voltage 15V
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 2.95V
Dimensions
Height 8.5mm
Thickness 8.25mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
