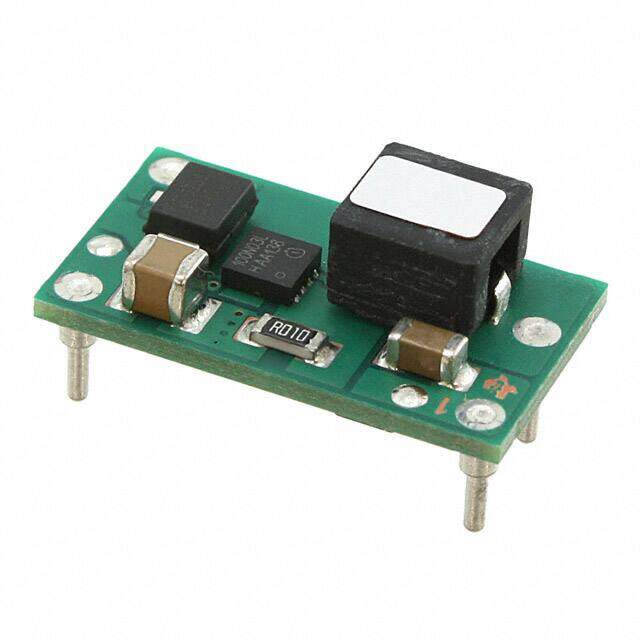

PTN04050CAD
RoHS
RoHS compliant
RoHS compliantPackage 4-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC to DC 1 Output 5 Volt to 15 Volt 2.4A 12 Watt 4-Pin DIP Module
PDF
/
Buying Options
Total Price: USD $15.88
Unit Price: USD $15.884
≥1 USD $15.884
≥10 USD $15.76432
≥100 USD $15.64288
≥500 USD $15.398592
≥1000 USD $14.6652
≥3000 USD $13.4431
Inventory: 438
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 8.25mm
Height 8.5mm
Technical
Min Input Voltage (DC) 2.95V
Max Input Voltage (DC) 5.5V
Nominal Output Voltage 15V
Isolation Non-Isolated
Max Output Power 12W
Switcher Configuration BOOST
Min Output Voltage 5V
Current - Output 1 2.4A
Control Technique PULSE WIDTH MODULATION
Max Output Voltage 15V
Output Power 12W
Output Current 2.4A
Input Voltage-Nom 5V
Operating Supply Voltage 5V
Voltage - Output 1 5V~15V
Max Output Current 2.4A
Output Voltage 15V
Efficiency 90%
Number of Outputs 1
Pin Count 4
Base Part Number PTN04050
Frequency 525kHz
Depth 12.57mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 12W
Power Rating 12W
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.87Lx0.50W x 0.34 H 22.1mmx12.7mmx8.6mm
Series PTN04050C (12W)
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 4
Surface Mount NO
Package / Case 4-DIP Module
Mounting Type Through Hole
Contact Plating Tin
