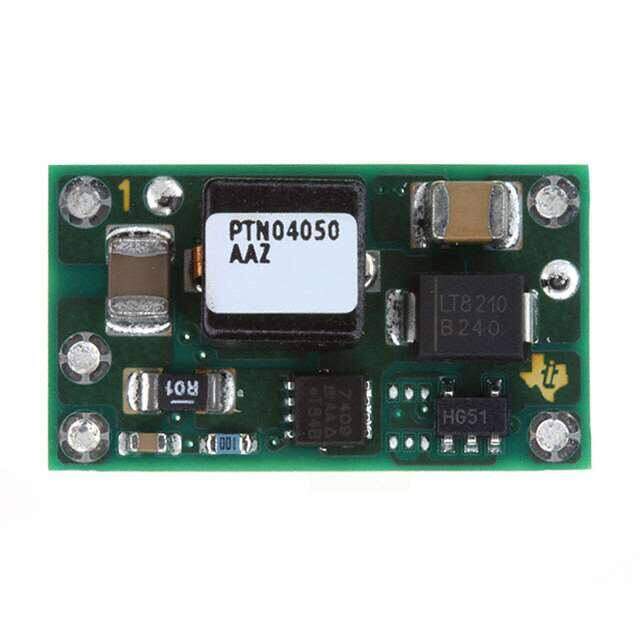

PTN04050AAZT
RoHS
RoHS compliant
RoHS compliantPackage 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
6-W, 3.3/5-V Input, Wide Adjust Output Positive-to-Negative Converter 5-Surface Mount Module
PDF
/
Inventory: 4619
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.25mm
Height 8.5mm
Technical
Switcher Configuration SINGLE
Min Output Voltage -15V
Current - Output 1 1A
Topology Boost
Max Output Voltage -3.3V
Output Power 6W
Output Current 1A
Input Voltage-Nom 5V
Voltage - Input (Min) 2.9V
Voltage - Output 1 -15V~-3.3V
Max Output Current 1A
Output Voltage -3.3V
Voltage - Input (Max) 7V
Efficiency 83%
Number of Outputs 1
Pin Count 5
Base Part Number PTN04050
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form UNSPECIFIED
Terminal Position DUAL
Max Power Dissipation 6W
Power Rating 6W
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature OCP, OTP, UVLO
JESD-609 Code e1
Size / Dimension 0.87Lx0.50W x 0.36 H 22.1mmx12.7mmx9.1mm
Series PTN04050A (6W)
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 5
Surface Mount NO
Package / Case 5-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 8 Weeks
Alternative Model
