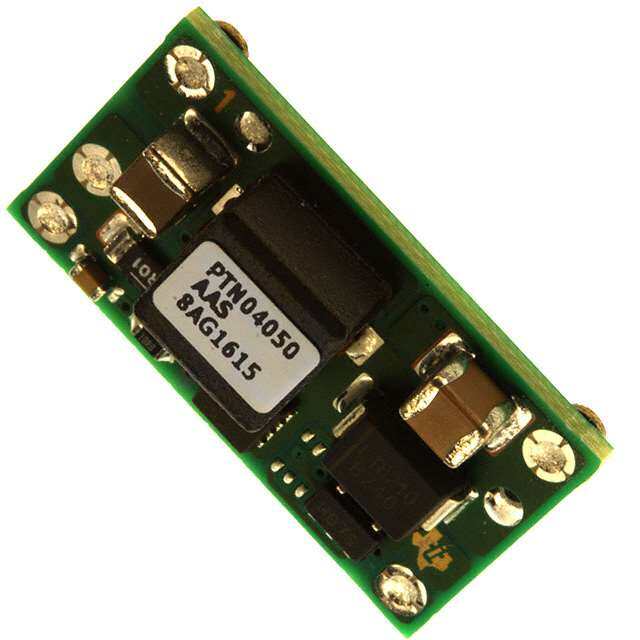

PTN04050AAST
RoHS
RoHS compliant
RoHS compliantPackage 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG SW POS-NEG 3.3V/5V 6W SMD
PDF
/
Inventory: 5942
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 9.144mm
Technical
Switcher Configuration SINGLE
Min Output Voltage -15V
Current - Output 1 1A
Topology Boost
Max Output Voltage -3.3V
Output Power 6W
Output Current 1A
Input Voltage-Nom 5V
Voltage - Input (Min) 2.9V
Voltage - Output 1 -15V~-3.3V
Max Output Current 1A
Output Voltage -3.3V
Voltage - Input (Max) 7V
Efficiency 80%
Number of Outputs 1
Pin Count 5
Base Part Number PTN04050
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position DUAL
Max Power Dissipation 6W
Applications ITE (Commercial)
Terminal Finish TIN LEAD
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code no
Feature OTP, UVLO
JESD-609 Code e0
Size / Dimension 0.87Lx0.50W x 0.36 H 22.1mmx12.7mmx9.1mm
Series PTN04050A (6W)
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 5
Surface Mount NO
Package / Case 5-SMD Module
Mounting Type Surface Mount
