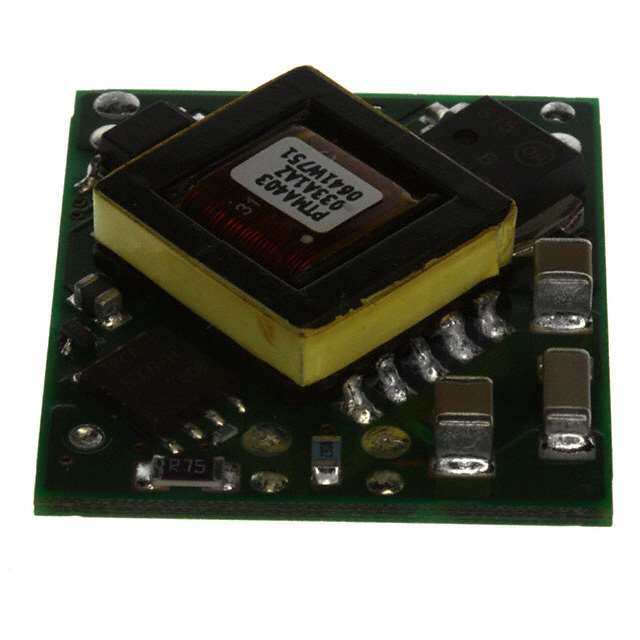

PTMA403033A1AZ
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC-DC 48VIN 3A 3.3V HRZ SMD
PDF
/
Inventory: 3798
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.25mm
Height 8.5mm
Technical
Isolation Isolated
Min Output Voltage 3V
Current - Output 1 3A
Max Output Voltage 3.6V
Output Power 10W
Output Current 3A
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Max Output Current 3A
Output Voltage 3.3V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 82%
Number of Outputs 1
Pin Count 4
Base Part Number PTMA403033
Frequency 300kHz
Depth 24.38mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10W
Power Rating 10W
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
JESD-609 Code e1
Size / Dimension 1.10Lx0.96W x 0.36 H 27.9mmx24.4mmx9.1mm
Series PTMA40xx (10W)
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 6.5g
Number of Pins 4
Surface Mount NO
Package / Case 4-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status NRND (Last Updated: 1 week ago)
