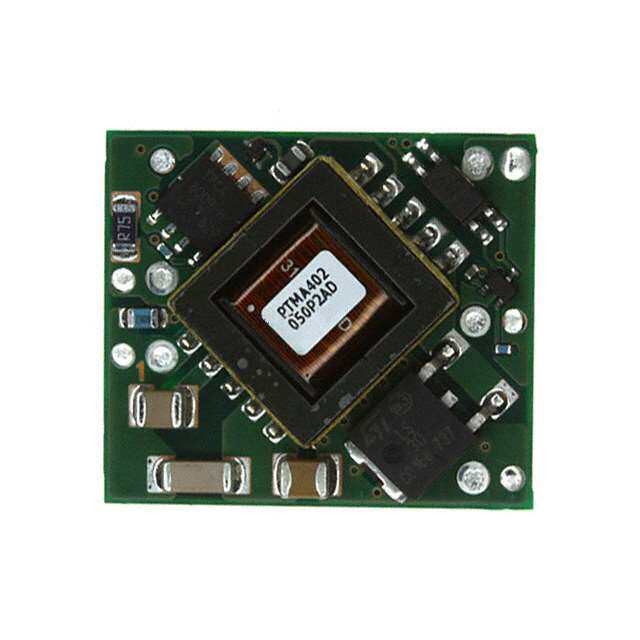

PTMA402050P2AD
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
10W, 36V to 75V Input, 1500V Isolation, DC-DC Converter 6-Through-Hole Module -40 to 85
PDF
/
Buying Options
Total Price: USD $21.69
Unit Price: USD $21.691019
≥1 USD $21.691019
≥10 USD $20.463228
≥100 USD $19.30493
≥500 USD $18.212195
≥1000 USD $17.181323
Inventory: 1170
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Thickness 8.25mm
Height 8.5mm
Technical
Isolation Isolated
Min Output Voltage 4.5V
Current - Output 1 2A
Max Output Voltage 5.5V
Output Power 10W
Output Current 2A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Max Output Current 2A
Output Voltage 5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 85%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 6
Base Part Number PTMA402050
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 300kHz
Depth 24.38mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10W
Power Rating 10W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Feature UVLO
JESD-609 Code e3
Size / Dimension 1.10Lx0.96W x 0.34 H 27.9mmx24.4mmx8.6mm
Series PTMA40xx (10W)
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 6.5g
Number of Pins 6
Surface Mount NO
Package / Case 6-DIP Module
Mounting Type Through Hole
Supply Chain
Lifecycle Status NRND (Last Updated: 1 week ago)
