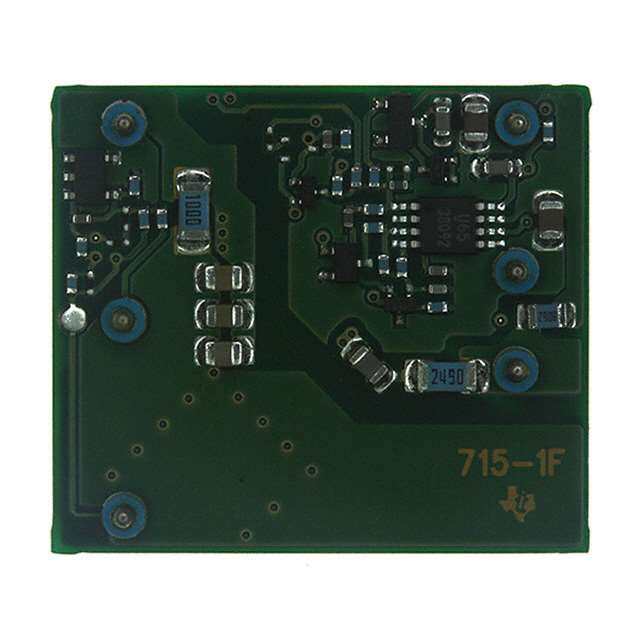

PTMA401120N2AST
RoHS
/
Package 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC-DC 48VIN 1A 12V SMD
PDF
/
Buying Options
Total Price: USD $42.21
Unit Price: USD $42.209735
≥1 USD $42.209735
≥250 USD $16.841881
≥500 USD $16.27996
≥1000 USD $16.001625
Inventory: 2769
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 6-SMD Module
Surface Mount NO
Number of Pins 6
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series PTMA40xx (10W)
Size / Dimension 1.10Lx0.96W x 0.36 H 27.9mmx24.4mmx9.1mm
JESD-609 Code e0
Feature Remote On/Off, OCP, OVP, UVLO
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Terminal Finish TIN LEAD
Applications ITE (Commercial)
Power (Watts) 10W
Subcategory Power Supply Modules
Max Power Dissipation 12W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Number of Functions 1
Base Part Number PTMA401120
Pin Count 6
Number of Outputs 1
Approval Agency UL, CSA, IEC
Efficiency 87%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 12V
Max Output Current 1A
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Output Current 1A
Output Power 12W
Max Output Voltage 13.2V
Current - Output 1 1A
Min Output Voltage 10.8V
Warm-up Time 0.0004 s
Dimensions
Height 9.144mm
Length 27.94mm
Width 24.38mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
