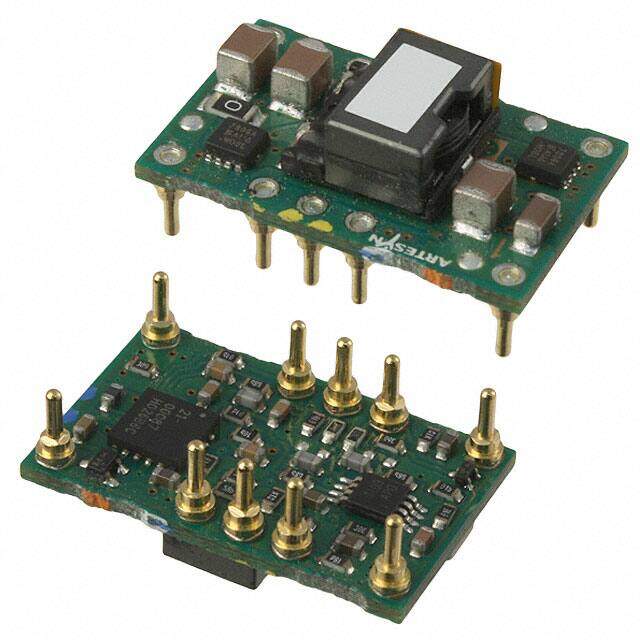

PTH12060YAH
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 12VIN 1-OUT 0.55V to 1.8V 10A 10-Pin DIP Module Tray
PDF
/
Inventory: 4686
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.75mm
Length 25.27mm
Height 9mm
Technical
Isolation Non-Isolated
Min Output Voltage 550mV
Current - Output 1 10A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT
Max Output Voltage 1.8V
Output Power 18W
Quiescent Current 10mA
Output Current 10A
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Voltage - Output 1 0.55V~1.8V
Max Output Current 10A
Output Voltage 1.8V
Voltage - Input (Max) 13.2V
Efficiency 83%
Approval Agency "UL,VDE"
Number of Outputs 1
Pin Count 10
Base Part Number TH12060
Depth 15.75mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 18W
Additional Feature OUTPUT VARIES ACCORDING TO THE INPUT AND RESISTOR DIVIDER CONFIGURATION
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 1.00Lx0.62W x 0.35 H 25.4mmx15.7mmx8.9mm
Series PTH12060
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 3.7g
Number of Pins 10
Surface Mount NO
Package / Case 10-DIP Module
Mounting Type Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 6 Weeks
Alternative Model
