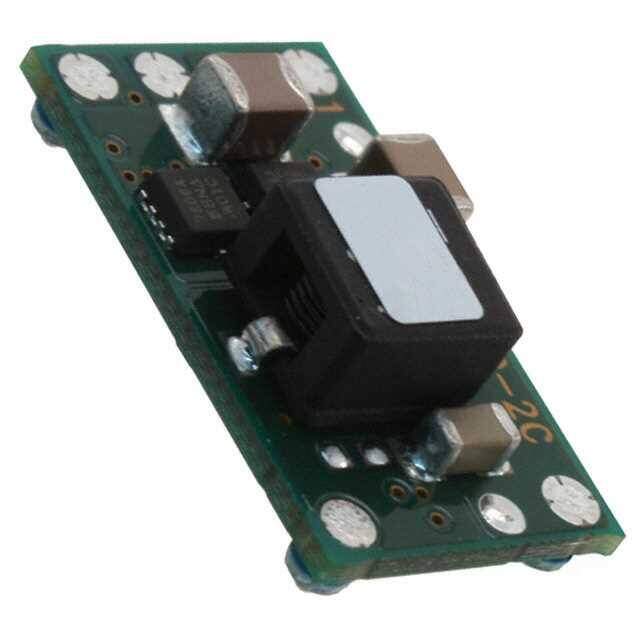

PTH12050LAS
RoHS
/
Package 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-1.8V 6A
PDF
/
Buying Options
Total Price: USD $16.99
Unit Price: USD $16.99075
≥1 USD $16.99075
≥10 USD $13.94125
≥100 USD $13.5052
≥500 USD $13.0701
≥1000 USD $12.63405
Inventory: 8603
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 6-SMD Module
Surface Mount NO
Number of Pins 6
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH12050
Size / Dimension 0.87Lx0.50W x 0.36 H 22.1mmx12.7mmx9.1mm
JESD-609 Code e0
Feature Remote On/Off, OCP, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Lead (Sn/Pb)
Applications ITE (Commercial)
HTS Code 8504.40.85.00
Max Power Dissipation 11W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Number of Functions 1
Depth 12.57mm
Base Part Number TH12050
Pin Count 6
Number of Outputs 1
Efficiency 88%
Voltage - Input (Max) 13.2V
Output Voltage 1.8V
Max Output Current 6A
Voltage - Output 1 0.8V~1.8V
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 6A
Max Output Voltage 1.8V
Current - Output 1 6A
Min Output Voltage 800mV
Dimensions
Height 9.144mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
