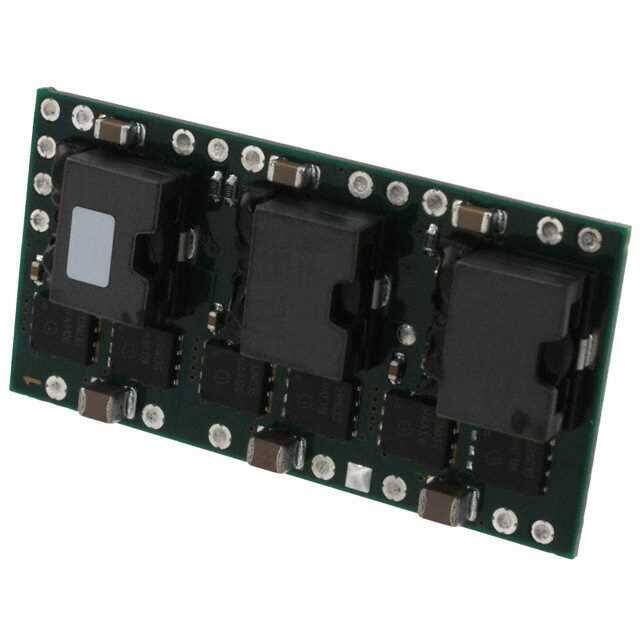

PTH12040WAS
RoHS
/
Package 20-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-5.5V 275W
PDF
/
Buying Options
Total Price: USD $8.22
Unit Price: USD $8.2232
≥1 USD $8.2232
≥10 USD $6.74785
≥100 USD $6.53695
≥500 USD $6.32605
≥1000 USD $6.11515
Inventory: 8109
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mounting Type Surface Mount
Package / Case 20-SMD Module
Surface Mount NO
Number of Pins 20
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH12040
Size / Dimension 2.04Lx1.04W x 0.37 H 51.8mmx26.5mmx9.4mm
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 20
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Max Power Dissipation 275W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
Depth 26.54mm
Base Part Number TH12040
Pin Count 20
Number of Outputs 1
Efficiency 96%
Voltage - Input (Max) 14V
Output Voltage 5.5V
Max Output Current 50A
Voltage - Output 1 0.8V~5.5V
Voltage - Input (Min) 8V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 50A
Max Output Voltage 5.5V
Current - Output 1 50A
Min Output Voltage 800mV
Isolation Non-Isolated
Dimensions
Height 9.07mm
Thickness 8.82mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
