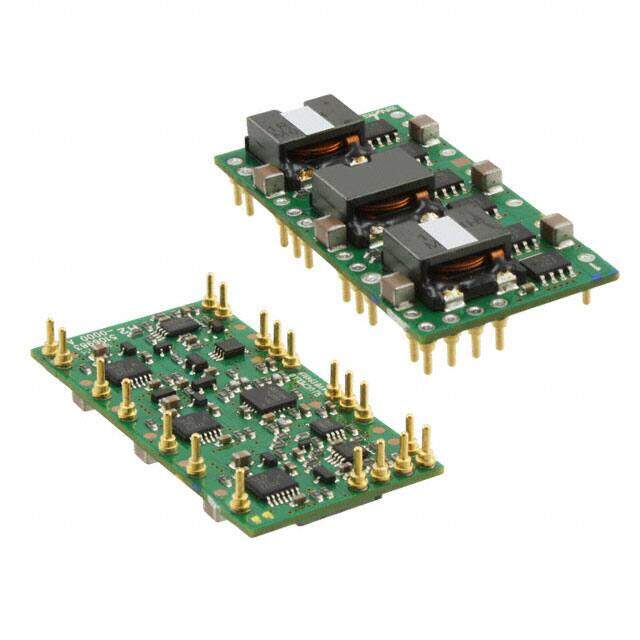

PTH12040WAH
RoHS
RoHS compliant
RoHS compliantPackage 20-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Non Isolated Pol Dc/Dc Converter, Pola, 275 W, 800 Mv, 5.5 V, 50 A, 8 V Rohs Compliant: Yes
PDF
/
Buying Options
Total Price: USD $71.8
Unit Price: USD $71.7992
≥1 USD $71.7992
≥10 USD $71.23248
≥100 USD $70.6618
≥500 USD $66.103154
≥1000 USD $63.823654
≥3000 USD $60.632528
Inventory: 102
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mounting Type Through Hole
Package / Case 20-DIP Module
Surface Mount NO
Number of Pins 20
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH12040
Size / Dimension 2.05Lx1.05W x 0.36 H 52.1mmx26.7mmx9.1mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 20
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin (Sn)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 275W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form PIN/PEG
Number of Functions 1
Depth 26.54mm
Base Part Number TH12040
Pin Count 20
Number of Outputs 1
Approval Agency UL, VDE
Efficiency 96%
Output Voltage 5.5V
Output Type Adjustable
Max Output Current 50A
Voltage - Output 1 0.8V~5.5V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 50A
Output Power 275W
Max Output Voltage 5.5V
Control Mode VOLTAGE-MODE
Current - Output 1 50A
Min Output Voltage 800mV
Max Output Power 275W
Isolation Non-Isolated
Max Input Voltage (DC) 14V
Min Input Voltage (DC) 8V
Dimensions
Height 9.07mm
Thickness 8.82mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
