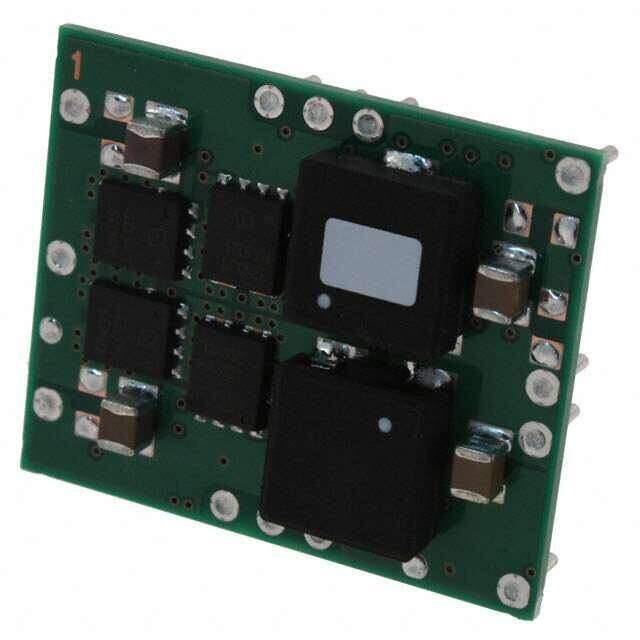

PTH12030LAH
RoHS
RoHS compliant
RoHS compliantPackage 13-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP .8-1.8V 26A T/H 13DIP
PDF
/
Buying Options
Total Price: USD $40.64
Unit Price: USD $40.6448
≥1 USD $40.6448
≥10 USD $33.34975
≥100 USD $32.3076
≥500 USD $31.26545
≥1000 USD $30.2233
Inventory: 1082
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Plating Tin
Mounting Type Through Hole
Package / Case 13-DIP Module
Surface Mount NO
Number of Pins 13
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH12030
Size / Dimension 1.37Lx1.12W x 0.35 H 34.8mmx28.4mmx8.9mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 13
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 46.8W
Technology HYBRID
Terminal Position QUAD
Terminal Form PIN/PEG
Number of Functions 1
Depth 28.45mm
Base Part Number TH12030
Pin Count 13
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 89%
Voltage - Input (Max) 13.8V
Output Voltage 1.8V
Max Output Current 26A
Voltage - Output 1 0.8V~1.8V
Voltage - Input (Min) 10.2V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 26A
Output Power 46.8W
Max Output Voltage 1.8V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 26A
Total Power Output-Max 26W
Min Output Voltage 800mV
Isolation Non-Isolated
Dimensions
Height 9mm
Length 34.8mm
Thickness 8.75mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
