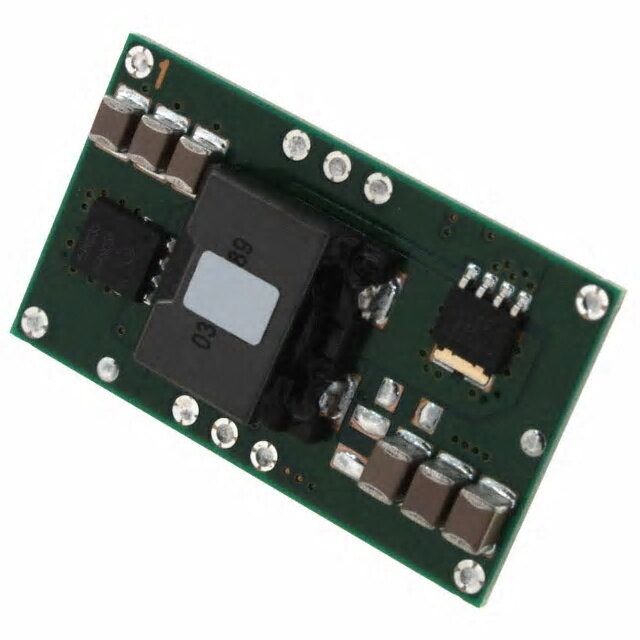

PTH12020LAZT
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-1.8V 18A
PDF
/
Buying Options
Total Price: USD $25.49
Unit Price: USD $25.4923
≥1 USD $25.4923
≥10 USD $20.9171
≥100 USD $20.2635
≥500 USD $19.6099
≥1000 USD $18.9563
Inventory: 3904
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mounting Type Surface Mount
Package / Case 10-SMD Module
Surface Mount NO
Number of Pins 10
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series PTH12020
Size / Dimension 1.50Lx0.87W x 0.38 H 38.1mmx22.1mmx9.7mm
JESD-609 Code e1
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 10
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 32W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Depth 22.1mm
Base Part Number TH12020
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 89%
Voltage - Input (Max) 13.2V
Output Voltage 1.8V
Max Output Current 18A
Voltage - Output 1 0.8V~1.8V
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 18A
Max Output Voltage 1.8V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 18A
Total Power Output-Max 32.4W
Min Output Voltage 800mV
Switching Frequency-Max 380kHz
Dimensions
Height 9mm
Length 37.97mm
Thickness 8.75mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
