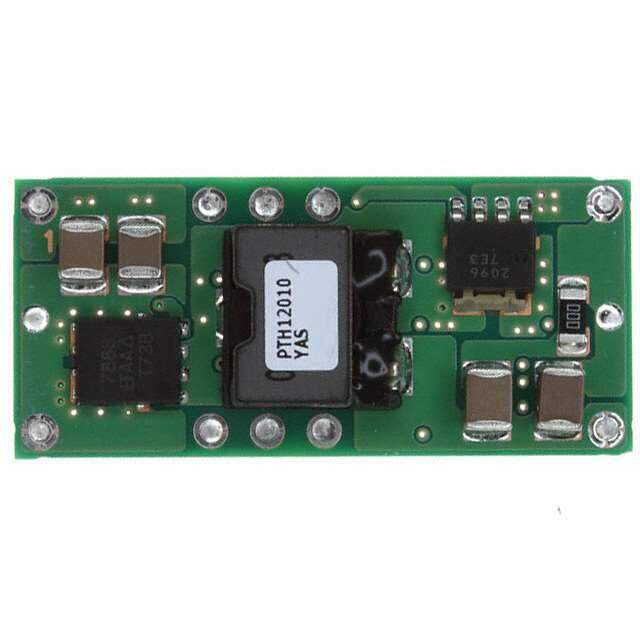

PTH12010YAST
RoHS
/
Package 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP 12VIN 15A 10SMD
PDF
/
Inventory: 7800
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Physical
Mounting Type Surface Mount
Package / Case 10-SMD Module
Surface Mount NO
Number of Pins 10
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series PTH12010
Size / Dimension 1.37Lx0.62W x 0.38 H 34.8mmx15.7mmx9.7mm
Feature Remote On/Off, OCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 20
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature OUTPUT VARIES ACCORDING TO THE INPUT AND RESISTOR DIVIDER CONFIGURATION
Max Power Dissipation 22W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
Base Part Number TH12010
Pin Count 20
JESD-30 Code R-XXMA-X20
Number of Outputs 1
Efficiency 88%
Voltage - Input (Max) 13.2V
Output Voltage 1.8V
Max Output Current 12A
Voltage - Output 1 0.55V~1.8V
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 12A
Quiescent Current 10mA
Max Output Voltage 1.8V
Current - Output 1 12A
Total Power Output-Max 27W
Min Output Voltage 550mV
Dimensions
Height 9mm
Thickness 8.75mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
