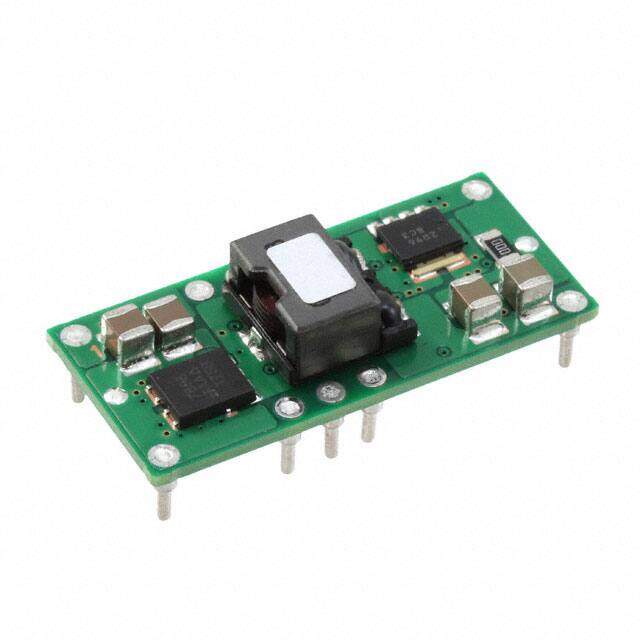

PTH12010YAH
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
15 A 12-V Input Bus Termination Power Module for DD /QD Memory 10-Through-Hole Module -40 to 85
PDF
/
Buying Options
Total Price: USD $35.64
Unit Price: USD $35.644
≥1 USD $35.644
≥10 USD $29.2467
≥100 USD $28.3328
≥500 USD $27.4189
≥1000 USD $26.505
Inventory: 1518
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.75mm
Length 34.8mm
Height 9mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 300kHz
Min Output Voltage 550mV
Total Power Output-Max 27W
Current - Output 1 12A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT
Max Output Voltage 1.8V
Quiescent Current 10mA
Output Current 12A
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Voltage - Output 1 0.55V~1.8V
Max Output Current 12A
Output Voltage 1.8V
Voltage - Input (Max) 13.2V
Efficiency 85%
Approval Agency UL, VDE
Number of Outputs 1
Pin Count 20
Base Part Number TH12010
Depth 15.75mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 21.6W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature OUTPUT VARIES ACCORDING TO THE INPUT AND RESISTOR DIVIDER CONFIGURATION
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 1.37Lx0.62W x 0.35 H 34.8mmx15.7mmx8.9mm
Series PTH12010
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 3.7g
Number of Pins 10
Surface Mount NO
Package / Case 10-DIP Module
Mounting Type Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 8 Weeks
Alternative Model
