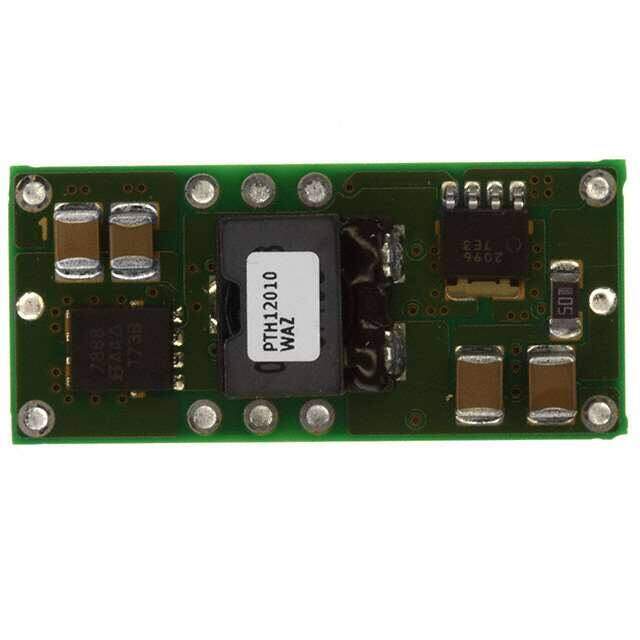

PTH12010WAZ
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 1.2-5.5V 66W
PDF
/
Buying Options
Total Price: USD $22.67
Unit Price: USD $22.6688
≥1 USD $22.6688
≥10 USD $22.49632
≥100 USD $22.32208
≥500 USD $21.9736
≥1000 USD $20.92728
≥3000 USD $19.183296
Inventory: 110
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 8.75mm
Length 34.8mm
Height 9mm
Technical
Min Input Voltage (DC) 10.8V
Max Input Voltage (DC) 13.2V
Isolation Non-Isolated
Switching Frequency-Max 400kHz
Max Output Power 21.6W
Min Output Voltage 1.2V
Current - Output 1 12A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 5.5V
Output Power 21.6W
Output Current 12A
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Output 1 1.2V~5.5V
Max Output Current 12A
Output Voltage 5.5V
Efficiency 94%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 10
Base Part Number TH12010
Depth 15.75mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 66W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, UVLO
JESD-609 Code e1
Size / Dimension 1.37Lx0.62W x 0.38 H 34.8mmx15.8mmx9.6mm
Series PTH12010
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 10
Surface Mount YES
Package / Case 10-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 6 Weeks
Alternative Model
