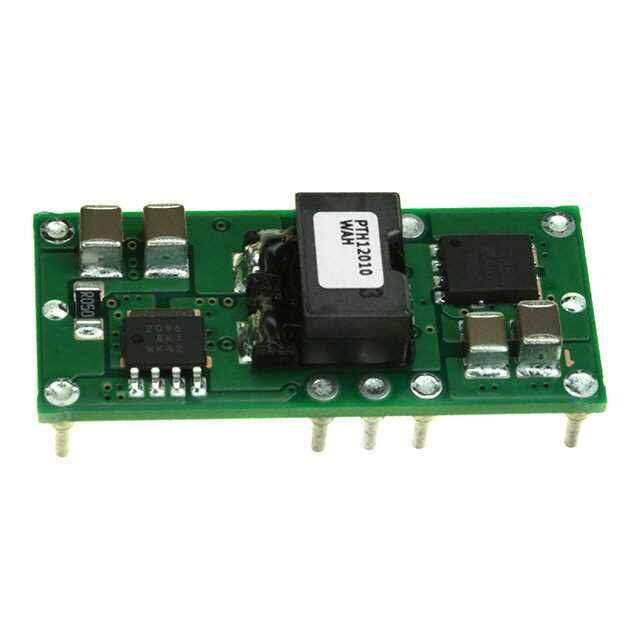

PTH12010WAH
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP 1.2-5.5V 12A TH 10DIP
PDF
/
Buying Options
Total Price: USD $22.67
Unit Price: USD $22.6688
≥1 USD $22.6688
≥10 USD $22.49632
≥100 USD $22.32208
≥500 USD $21.9736
≥1000 USD $20.92728
≥3000 USD $19.183296
Inventory: 327
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Plating Tin
Mounting Type Through Hole
Package / Case 10-DIP Module
Surface Mount NO
Number of Pins 10
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH12010
Size / Dimension 1.37Lx0.62W x 0.36 H 34.8mmx15.7mmx9.1mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 66W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 15.75mm
Frequency 350kHz
Base Part Number TH12010
Pin Count 10
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 94%
Output Voltage 5.5V
Max Output Current 12A
Voltage - Output 1 1.2V~5.5V
Operating Supply Voltage 12V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 12A
Output Power 66W
Max Output Voltage 5.5V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 12A
Min Output Voltage 1.2V
Max Output Power 66W
Isolation Non-Isolated
Nominal Output Voltage 5.5V
Max Input Voltage (DC) 13.2V
Min Input Voltage (DC) 10.8V
Dimensions
Height 9mm
Length 34.8mm
Thickness 8.75mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
