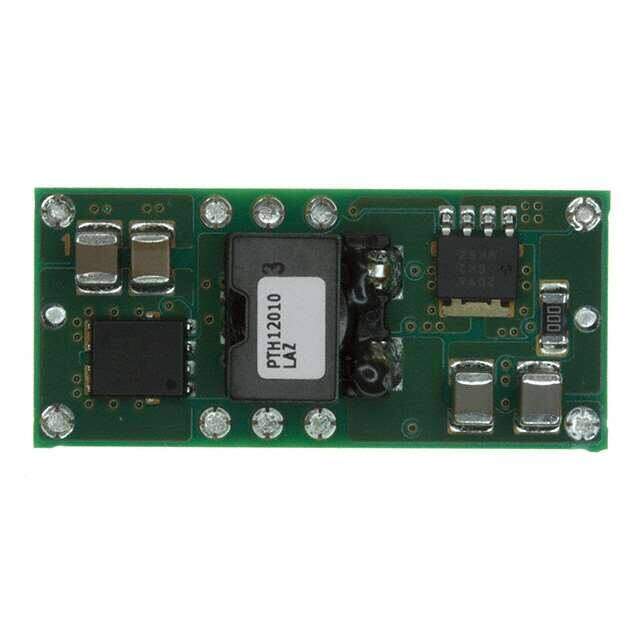

PTH12010LAZT
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP 12VIN 12A ADJ 10SMD
PDF
/
Buying Options
Total Price: USD $27.54
Unit Price: USD $27.540823
≥1 USD $27.540823
≥10 USD $25.981913
≥100 USD $24.511239
≥500 USD $23.12381
≥1000 USD $21.814911
Inventory: 1186
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 34.8mm
Height 9.652mm
Technical
Isolation Non-Isolated
Min Output Voltage 800mV
Current - Output 1 12A
Max Output Voltage 1.8V
Output Power 66W
Output Current 12A
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Voltage - Output 1 0.8V~1.8V
Max Output Current 12A
Output Voltage 1.8V
Voltage - Input (Max) 13.2V
Efficiency 89%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 10
Base Part Number TH12010
Depth 15.75mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 22W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off, OCP, UVLO
JESD-609 Code e1
Size / Dimension 1.37Lx0.62W x 0.38 H 34.8mmx15.7mmx9.7mm
Series PTH12010
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 10
Surface Mount NO
Package / Case 10-SMD Module
Mounting Type Surface Mount
