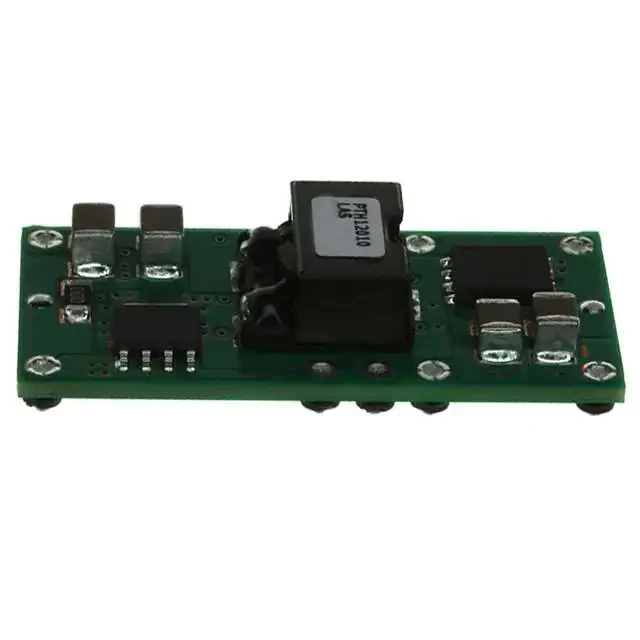

PTH12010LAS
RoHS
/
Package 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-1.8V 22W
PDF
/
Buying Options
Total Price: USD $25.77
Unit Price: USD $25.7664
≥1 USD $25.7664
≥10 USD $25.56752
≥100 USD $25.36864
≥500 USD $24.971936
≥1000 USD $23.78288
≥3000 USD $21.801032
Inventory: 88
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mounting Type Surface Mount
Package / Case 10-SMD Module
Surface Mount NO
Number of Pins 10
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH12010
Size / Dimension 1.37Lx0.62W x 0.38 H 34.8mmx15.8mmx9.6mm
Feature Remote On/Off, OCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 10
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 22W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Number of Functions 1
Depth 15.75mm
Base Part Number TH12010
Pin Count 10
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 89%
Voltage - Input (Max) 13.2V
Output Voltage 1.8V
Max Output Current 12A
Voltage - Output 1 0.8V~1.8V
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 12A
Output Power 66W
Max Output Voltage 1.8V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 12A
Min Output Voltage 800mV
Switching Frequency-Max 400kHz
Isolation Non-Isolated
Dimensions
Height 9mm
Length 34.8mm
Thickness 8.75mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
