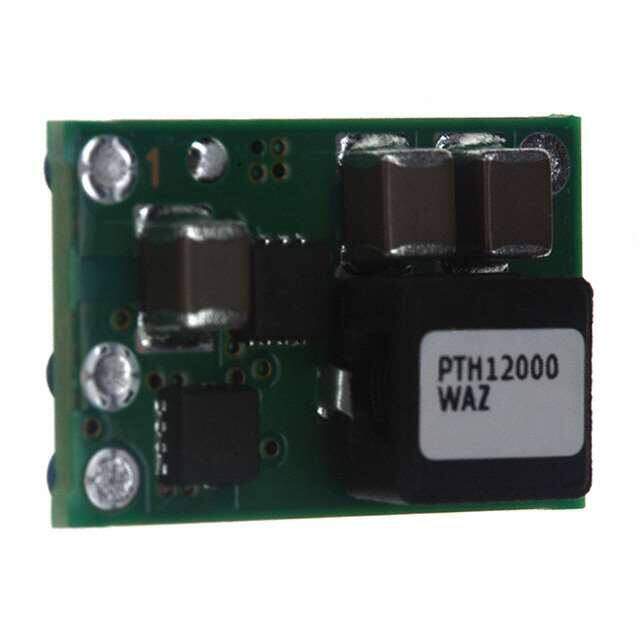

PTH12000WAZT
RoHS
RoHS compliant
RoHS compliantPackage 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 1.2-5.5V 6A
PDF
/
Buying Options
Total Price: USD $15.57
Unit Price: USD $15.5724
≥1 USD $15.5724
≥10 USD $12.7775
≥100 USD $12.37755
≥500 USD $11.97855
≥1000 USD $11.57955
Inventory: 167
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.25mm
Height 8.5mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 400kHz
Min Output Voltage 1.2V
Current - Output 1 6A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT
Max Output Voltage 5.5V
Output Power 33W
Output Current 6A
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Voltage - Output 1 1.2V~5.5V
Max Output Current 6A
Output Voltage 5.5V
Voltage - Input (Max) 13.2V
Efficiency 92%
Approval Agency UL, VDE
Number of Outputs 1
Pin Count 5
Base Part Number TH12000
Depth 12.57mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 33W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature OCP, UVLO
JESD-609 Code e1
Size / Dimension 0.75Lx0.50W x 0.36 H 19.1mmx12.7mmx9.1mm
Series PTH12000
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 5
Surface Mount NO
Package / Case 5-SMD Module
Mounting Type Surface Mount
