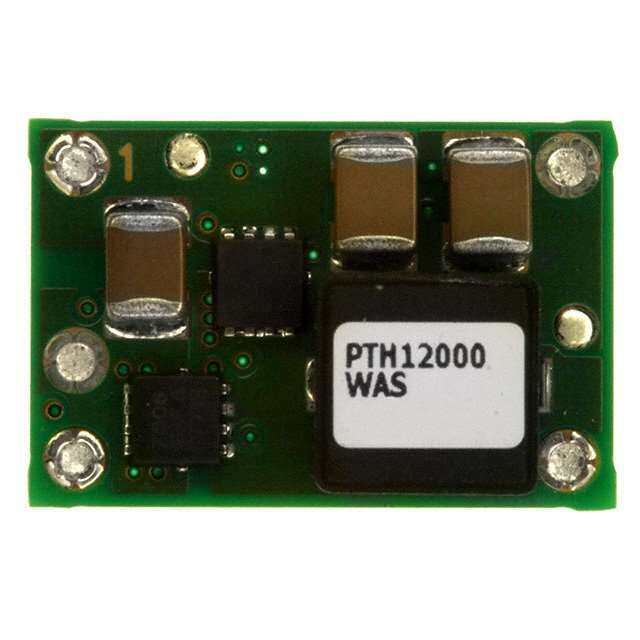

PTH12000WAS
RoHS
/
Package 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 1.2-5.5V 6A
PDF
/
Buying Options
Total Price: USD $11.52
Unit Price: USD $11.5192
≥1 USD $11.5192
≥10 USD $11.42768
≥100 USD $11.34056
≥500 USD $11.166144
≥1000 USD $10.817171
≥3000 USD $9.770429
Inventory: 168
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mounting Type Surface Mount
Package / Case 5-SMD Module
Surface Mount NO
Number of Pins 5
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH12000
Size / Dimension 0.75Lx0.50W x 0.36 H 19.1mmx12.7mmx9.1mm
Feature OCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 5
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 33W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Number of Functions 1
Depth 12.57mm
Base Part Number TH12000
Pin Count 5
Number of Outputs 1
Approval Agency UL, VDE
Efficiency 92%
Output Voltage 5.5V
Max Output Current 6A
Voltage - Output 1 1.2V~5.5V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 6A
Output Power 33W
Max Output Voltage 5.5V
Protections OUTPUT OVER CURRENT
Control Mode VOLTAGE-MODE
Current - Output 1 6A
Min Output Voltage 1.2V
Max Output Power 33W
Switching Frequency-Max 400kHz
Isolation Non-Isolated
Max Input Voltage (DC) 13.2V
Min Input Voltage (DC) 10.8V
Dimensions
Height 8.5mm
Thickness 8.25mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
