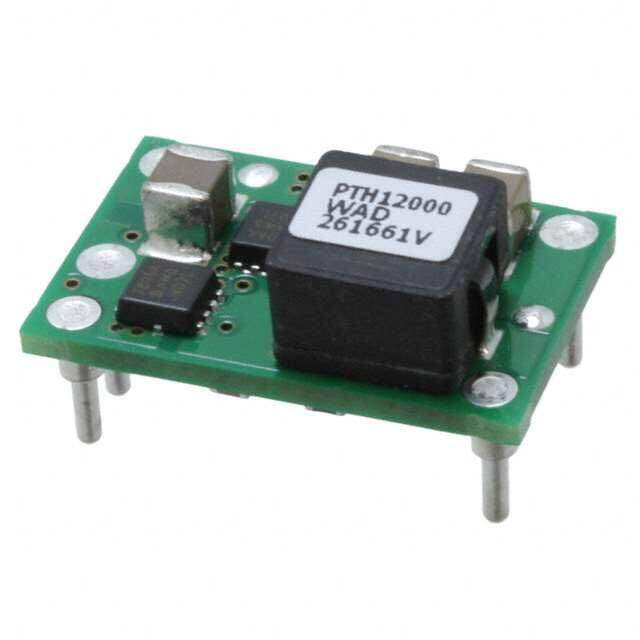

PTH12000WAD

Texas Instruments
RoHS
RoHS RoHS compliant
Package 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description Module DC-DC 12VIN 1-OUT 1.2V to 5.5V 6A 5-Pin DIP Module Tray
PDF
/
Buying Options
Total Price: USD $11.52
Unit Price: USD $11.5192
≥1 USD $11.5192
≥10 USD $11.42768
≥100 USD $11.34056
≥500 USD $11.166144
≥1000 USD $10.817242
≥3000 USD $9.770438
Inventory: 386
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Thickness 8.25mm
Height 8.5mm

Technical

Min Input Voltage (DC) 10.8V
Max Input Voltage (DC) 13.2V
Isolation Non-Isolated
Max Output Power 33W
Min Output Voltage 1.2V
Current - Output 1 6A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT
Max Output Voltage 5.5V
Output Power 33W
Output Current 6A
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Output 1 1.2V~5.5V
Max Output Current 6A
Output Voltage 5.5V
Efficiency 92%
Approval Agency UL, VDE
Number of Outputs 1
Pin Count 5
Base Part Number TH12000
Frequency 350kHz
Depth 18.92mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 33W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.75Lx0.50W x 0.34 H 19.1mmx12.7mmx8.6mm
Series PTH12000
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Number of Pins 5
Surface Mount NO
Package / Case 5-DIP Module
Mounting Type Through Hole

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 6 Weeks
