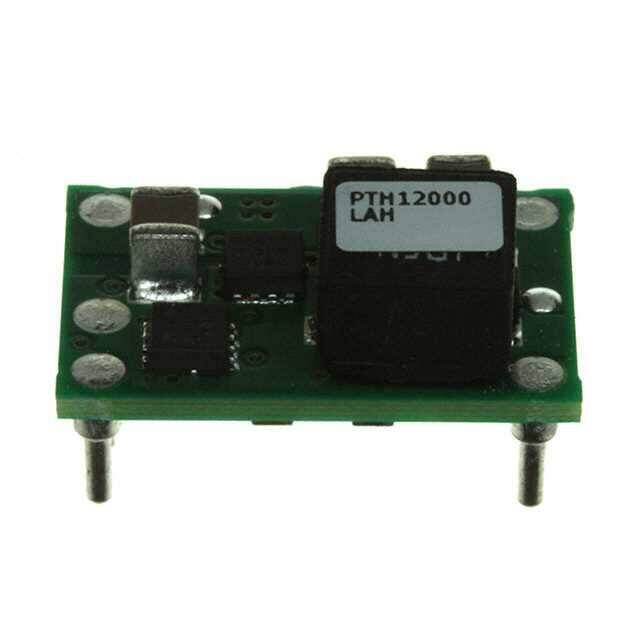

PTH12000LAH
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP .8-1.8V 6A HORZ T/H
PDF
/
Buying Options
Total Price: USD $12.27
Unit Price: USD $12.2672
≥1 USD $12.2672
Inventory: 102
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mounting Type Through Hole
Package / Case 5-DIP Module
Surface Mount NO
Number of Pins 5
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH12000
Size / Dimension 0.75Lx0.50W x 0.34 H 19.1mmx12.7mmx8.6mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin (Sn)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 10.8W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 12.57mm
Base Part Number TH12000
Pin Count 5
Number of Outputs 1
Approval Agency UL, VDE
Efficiency 87%
Voltage - Input (Max) 13.2V
Output Voltage 1.8V
Max Output Current 6A
Voltage - Output 1 0.8V~1.8V
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 6A
Output Power 10.8W
Max Output Voltage 1.8V
Protections OUTPUT OVER CURRENT
Control Mode VOLTAGE-MODE
Current - Output 1 6A
Min Output Voltage 800mV
Switching Frequency-Max 400kHz
Isolation Non-Isolated
Dimensions
Height 8.5mm
Thickness 8.25mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
