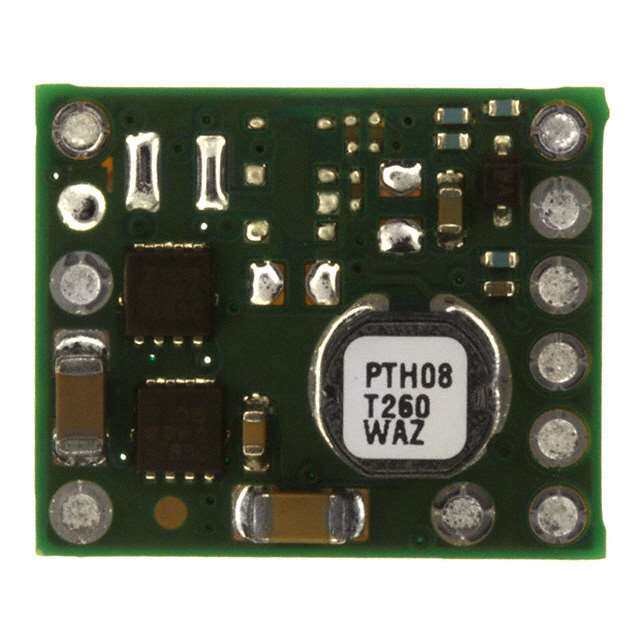

PTH08T261WAZ
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP 3A ADJ-OUT 10SMD
PDF
/
Buying Options
Total Price: USD $10.25
Unit Price: USD $10.252
≥1 USD $10.252
≥10 USD $10.17808
≥100 USD $10.09976
≥500 USD $9.944493
≥1000 USD $9.6338
≥3000 USD $8.701572
Inventory: 120
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 7.5mm
Height 9.09mm
Technical
Isolation Non-Isolated
Min Output Voltage 690mV
Total Power Output-Max 9.9W
Current - Output 1 3A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 5.5V
Output Power 16.5W
Output Current 3A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 0.69V~5.5V
Max Output Current 3A
Output Voltage 5.5V
Voltage - Input (Max) 14V
Efficiency 95%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 10
Base Part Number TH08T261
Depth 15.75mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 17W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e1
Size / Dimension 0.75Lx0.62W x 0.36 H 19.1mmx15.7mmx9.1mm
Series PTH08T261W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 2.5g
Number of Pins 10
Surface Mount NO
Package / Case 10-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 8 Weeks
