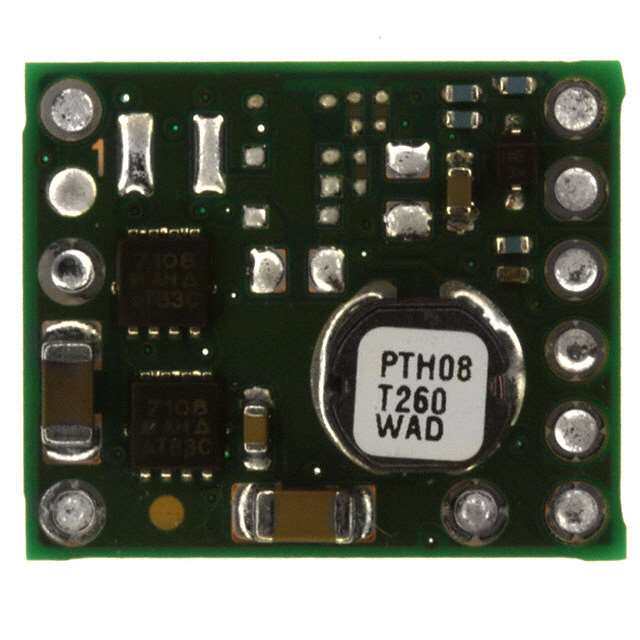

PTH08T260WAD
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP 3A 4.5-14V T/H 10-DIP
PDF
/
Buying Options
Total Price: USD $7.69
Unit Price: USD $7.6912
≥1 USD $7.6912
Inventory: 661
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 7.5mm
Height 8mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 14V
Nominal Output Voltage 5.5V
Isolation Non-Isolated
Max Output Power 16.5W
Min Output Voltage 690mV
Current - Output 1 3A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 5.5V
Output Power 16.5W
Output Current 3A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Output 1 0.69V~5.5V
Max Output Current 3A
Output Voltage 5.5V
Efficiency 95%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 10
Base Part Number TH08T260
Frequency 300kHz
Depth 15.75mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 16.5W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.75Lx0.62W x 0.34 H 19.1mmx15.7mmx8.6mm
Series PTH08T260W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 2.5g
Number of Pins 10
Surface Mount NO
Package / Case 10-DIP Module
Mounting Type Through Hole
Contact Plating Tin
