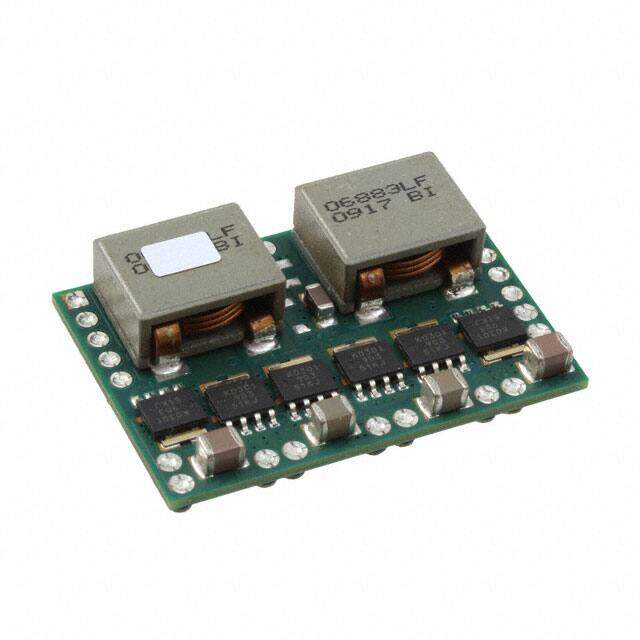

PTH08T255WAS
RoHS
/
Package 22-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 3V to 5.25V 40A 22-Pin SMD Module Tray
PDF
/
Buying Options
Total Price: USD $72.63
Unit Price: USD $72.627001
≥1 USD $72.627001
≥10 USD $68.51604
≥100 USD $64.637772
≥500 USD $60.979026
≥1000 USD $57.527384
Inventory: 1289
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 6.64mm
Height 9.64mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 750kHz
Min Output Voltage 3V
Current - Output 1 40A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 5.25V
Output Current 40A
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 8V
Voltage - Output 1 3V~5.25V
Max Output Current 40A
Output Voltage 5.25V
Voltage - Input (Max) 14V
Efficiency 95%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 22
Base Part Number TH08T255
Depth 25.91mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form BALL
Terminal Position QUAD
Technology HYBRID
Max Power Dissipation 210W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 22
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OTP, UVLO
Size / Dimension 1.52Lx1.02W x 0.40 H 38.6mmx25.9mmx10.2mm
Series PTH08T255W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 22
Surface Mount YES
Package / Case 22-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 8 Weeks
