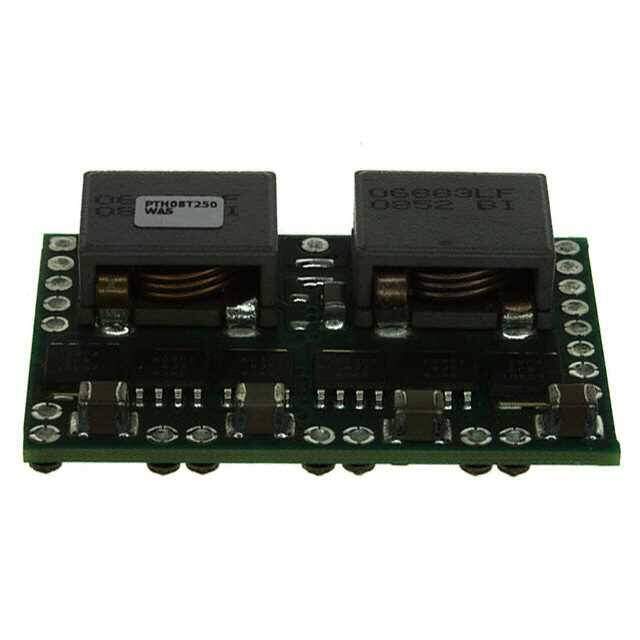

PTH08T250WAST
RoHS
/
Package 22-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.7-3.6V
PDF
/
Buying Options
Total Price: USD $69.75
Unit Price: USD $69.750683
≥1 USD $69.750683
≥10 USD $65.802531
≥100 USD $62.077859
≥500 USD $58.564015
≥1000 USD $55.249079
Inventory: 1142
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 6.64mm
Height 9.64mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 750kHz
Min Output Voltage 700mV
Current - Output 1 50A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Current 48A
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 4.5V
Voltage - Output 1 0.7V~3.6V
Max Output Current 50A
Output Voltage 3.6V
Voltage - Input (Max) 14V
Efficiency 94%
Approval Agency UL, CSA
Number of Outputs 1
Base Part Number TH08T250
Depth 25.91mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form BALL
Terminal Position QUAD
Technology HYBRID
Max Power Dissipation 180W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Lead (Sn/Pb)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 22
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e0
Size / Dimension 1.52Lx1.02W x 0.38 H 38.6mmx25.9mmx9.7mm
Series PTH08T250W
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 22
Surface Mount YES
Package / Case 22-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 8 Weeks
