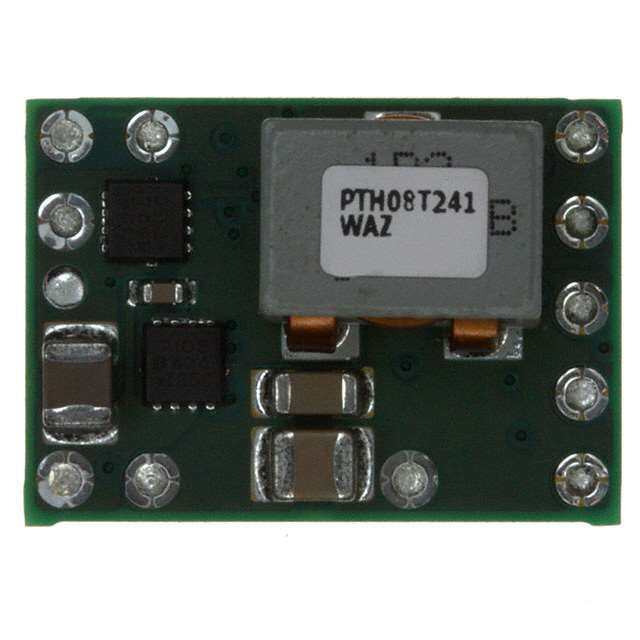

PTH08T241WAZT
RoHS
RoHS compliant
RoHS compliantPackage 11-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 0.69V to 5.5V 10A 11-Pin DIP Module T/R
PDF
/
Inventory: 6189
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Mounting Type Surface Mount
Package / Case 11-SMD Module
Surface Mount NO
Number of Pins 11
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series PTH08T241W
Size / Dimension 0.87Lx0.62W x 0.36 H 22.1mmx15.8mmx9.1mm
JESD-609 Code e1
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 11
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 55W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 2.54mm
Base Part Number TH08T241
Pin Count 11
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 95%
Voltage - Input (Max) 14V
Output Voltage 5.5V
Max Output Current 10A
Voltage - Output 1 0.69V~5.5V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 10A
Output Power 55W
Max Output Voltage 5.5V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 10A
Total Power Output-Max 33W
Min Output Voltage 690mV
Switching Frequency-Max 400kHz
Dimensions
Height 8.64mm
Thickness 8.39mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
