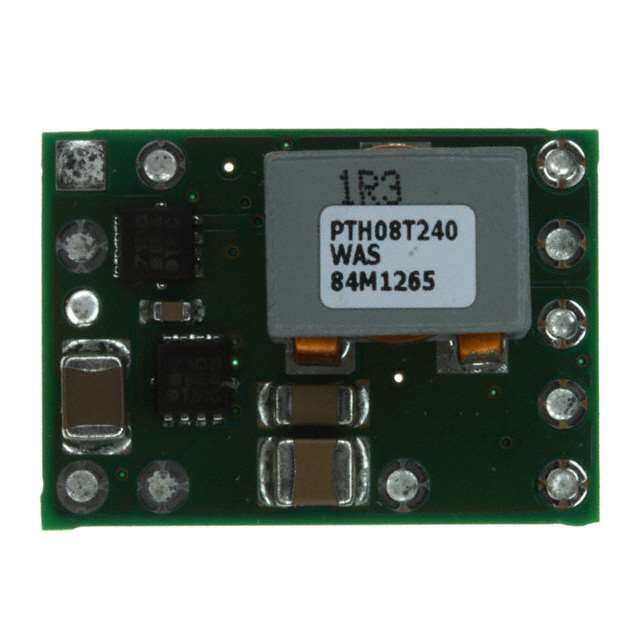

PTH08T241WAST
RoHS
/
Package 11-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.69-5.5V
PDF
/
Buying Options
Total Price: USD $61.75
Unit Price: USD $61.75
≥1 USD $61.75
≥10 USD $50.6673
≥100 USD $49.08365
≥500 USD $47.5
≥1000 USD $45.9173
Inventory: 126
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Mounting Type Surface Mount
Package / Case 11-SMD Module
Surface Mount NO
Number of Pins 11
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series PTH08T241W
Size / Dimension 0.87Lx0.62W x 0.36 H 22.1mmx15.8mmx9.1mm
JESD-609 Code e0
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 11
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Lead (Sn/Pb)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 55W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Depth 15.75mm
Base Part Number TH08T241
Pin Count 11
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 95%
Voltage - Input (Max) 14V
Output Voltage 5.5V
Max Output Current 10A
Voltage - Output 1 0.69V~5.5V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 10A
Max Output Voltage 5.5V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 10A
Total Power Output-Max 33W
Min Output Voltage 690mV
Switching Frequency-Max 400kHz
Isolation Non-Isolated
Dimensions
Height 8.64mm
Thickness 8.39mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
