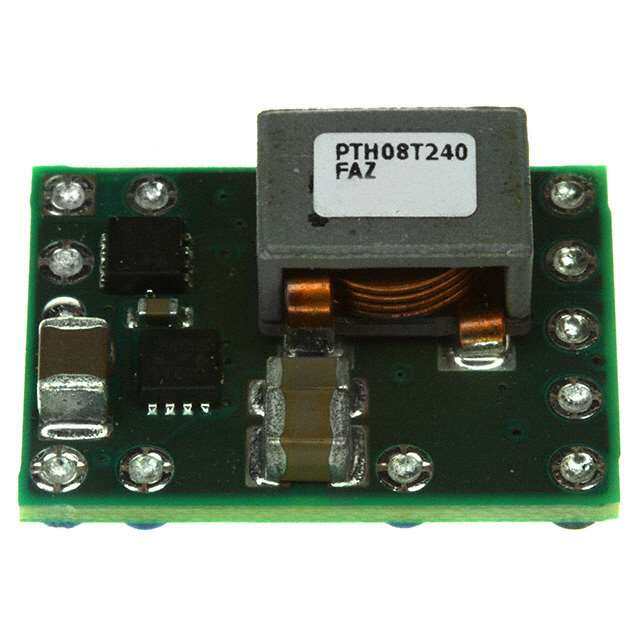

PTH08T240FAZ
RoHS
RoHS compliant
RoHS compliantPackage 11-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP 14VIN 10A ADJ 11SMD
PDF
/
Buying Options
Total Price: USD $22.9
Unit Price: USD $22.8988
≥1 USD $22.8988
≥10 USD $18.7891
≥100 USD $18.202
≥500 USD $17.6149
≥1000 USD $17.0278
Inventory: 1324
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.39mm
Height 8.64mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 340kHz
Min Output Voltage 690mV
Current - Output 1 10A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT; THERMAL
Max Output Voltage 2V
Output Current 10A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 0.69V~2V
Max Output Current 10A
Output Voltage 2V
Voltage - Input (Max) 14V
Efficiency 90%
Approval Agency UL, CSA
Number of Outputs 1
Base Part Number TH08T240
Depth 15.75mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 20W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 11
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e1
Size / Dimension 0.87Lx0.62W x 0.36 H 22.1mmx15.7mmx9.1mm
Series PTH08T240F
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 11
Surface Mount NO
Package / Case 11-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 6 Weeks
