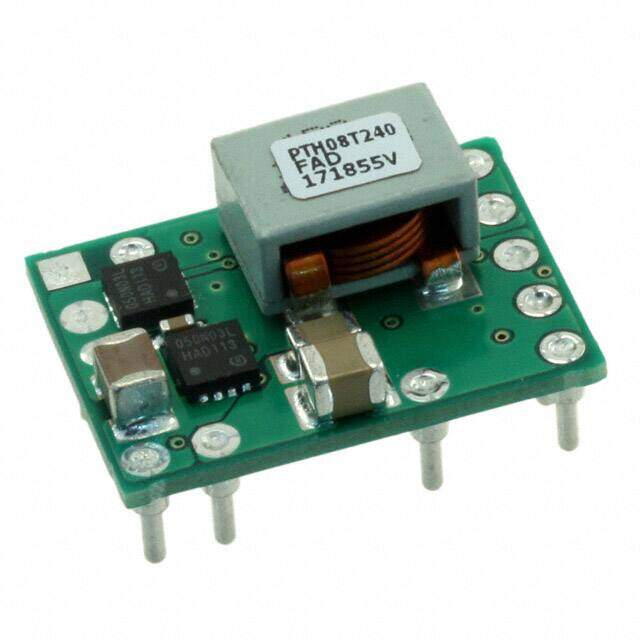

PTH08T240FAD
RoHS
RoHS compliant
RoHS compliantPackage 11-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP 14VIN 10A ADJ 11DIP
PDF
/
Buying Options
Total Price: USD $19.18
Unit Price: USD $19.184
≥1 USD $19.184
≥10 USD $19.03968
≥100 USD $18.89272
≥500 USD $18.597216
≥1000 USD $17.711522
≥3000 USD $16.235639
Inventory: 186
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Plating Tin
Mounting Type Through Hole
Package / Case 11-DIP Module
Surface Mount NO
Number of Pins 11
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH08T240F
Size / Dimension 0.87Lx0.62W x 0.34 H 22.1mmx15.7mmx8.6mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 11
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 20W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 15.75mm
Base Part Number TH08T240
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 90%
Voltage - Input (Max) 14V
Output Voltage 2V
Output Type Adjustable
Max Output Current 10A
Voltage - Output 1 0.69V~2V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 10A
Max Output Voltage 2V
Protections OUTPUT OVER CURRENT; THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 10A
Min Output Voltage 690mV
Switching Frequency-Max 340kHz
Isolation Non-Isolated
Dimensions
Height 8.64mm
Thickness 8.39mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
