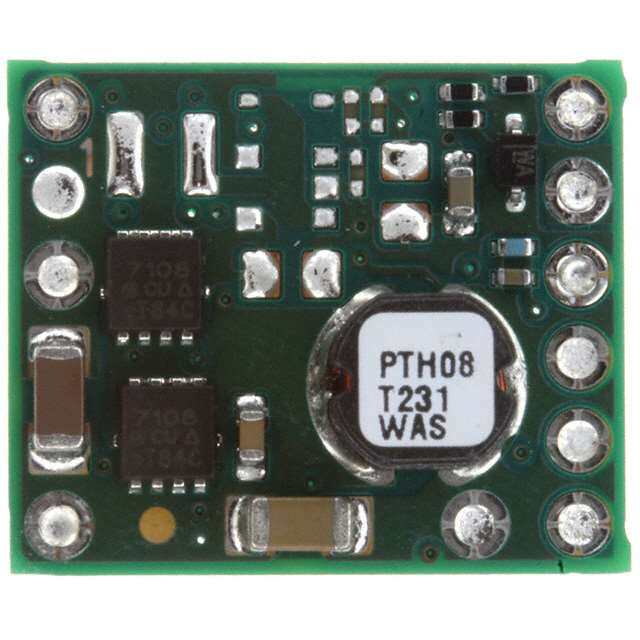

PTH08T231WAS
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP 6A ADJ-OUT 10SMD
PDF
/
Buying Options
Total Price: USD $15.31
Unit Price: USD $15.312
≥1 USD $15.312
≥10 USD $15.19408
≥100 USD $15.07528
≥500 USD $14.839977
≥1000 USD $14.133293
≥3000 USD $12.955474
Inventory: 154
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mounting Type Surface Mount
Package / Case 10-SMD Module
Surface Mount NO
Number of Pins 10
Weight 2.5g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH08T231W
Size / Dimension 0.75Lx0.62W x 0.36 H 19.1mmx15.7mmx9.1mm
JESD-609 Code e0
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 10
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Lead (Sn/Pb)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 33W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Number of Functions 1
Depth 15.75mm
Frequency 300kHz
Base Part Number TH08T231
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 95%
Output Voltage 5.5V
Max Output Current 6A
Voltage - Output 1 0.69V~5.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 6A
Output Power 33W
Max Output Voltage 5.5V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 6A
Min Output Voltage 690mV
Max Output Power 33W
Isolation Non-Isolated
Max Input Voltage (DC) 14V
Min Input Voltage (DC) 4.5V
Dimensions
Height 341μm
Thickness 7.5mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
