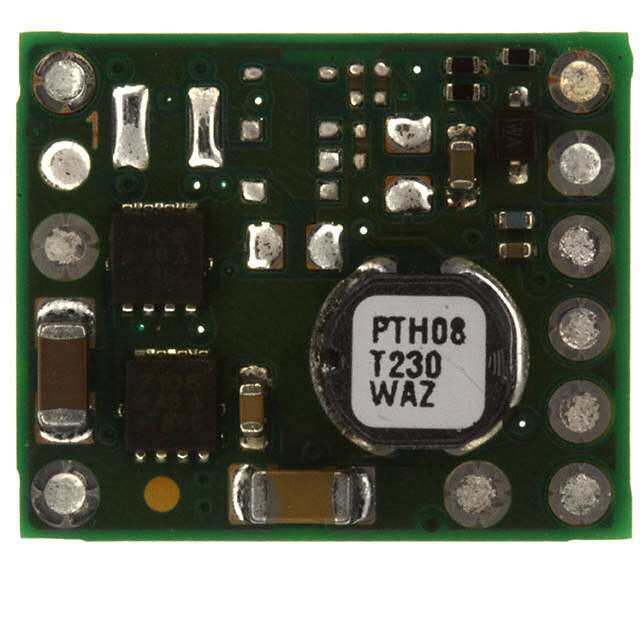

PTH08T230WAZ
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.69-5.5V
PDF
/
Buying Options
Total Price: USD $15.31
Unit Price: USD $15.312
≥1 USD $15.312
≥10 USD $15.19408
≥100 USD $15.07528
≥500 USD $14.839977
≥1000 USD $14.133293
≥3000 USD $12.955474
Inventory: 326
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 7.5mm
Height 9.09mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 14V
Isolation Non-Isolated
Max Output Power 33W
Min Output Voltage 690mV
Current - Output 1 6A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 5.5V
Output Power 33W
Output Current 6A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Output 1 0.69V~5.5V
Max Output Current 6A
Output Voltage 5.5V
Efficiency 95%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 10
Base Part Number TH08T230
Frequency 300kHz
Depth 18.92mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 33W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e1
Size / Dimension 0.75Lx0.62W x 0.36 H 19.1mmx15.7mmx9.1mm
Series PTH08T230W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 10
Surface Mount NO
Package / Case 10-SMD Module
Mounting Type Surface Mount
Contact Plating Copper, Silver, Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
