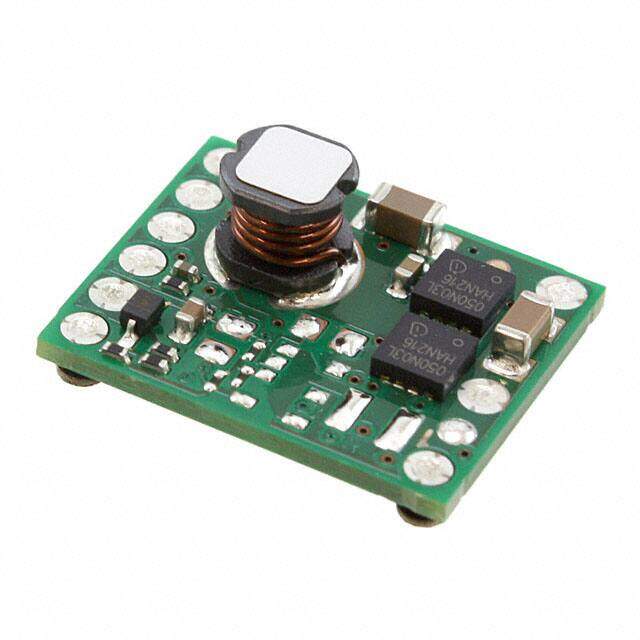

PTH08T230WAS
RoHS
/
Package 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 0.69V to 5.5V 6A 10-Pin DIP Module Tray
PDF
/
Buying Options
Total Price: USD $11.66
Unit Price: USD $11.66
≥1 USD $11.66
Inventory: 267
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 7.5mm
Height 341μm
Technical
Isolation Non-Isolated
Min Output Voltage 690mV
Current - Output 1 6A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 5.5V
Output Power 33W
Output Current 6A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 0.69V~5.5V
Max Output Current 6A
Output Voltage 5.5V
Voltage - Input (Max) 14V
Efficiency 95%
Approval Agency UL, CSA
Number of Outputs 1
Base Part Number TH08T230
Depth 15.75mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 33W
Power Rating 33W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
Size / Dimension 0.75Lx0.62W x 0.36 H 19.1mmx15.7mmx9.1mm
Series PTH08T230W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 10
Surface Mount NO
Package / Case 10-SMD Module
Mounting Type Surface Mount
Contact Plating Lead, Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 6 Weeks
