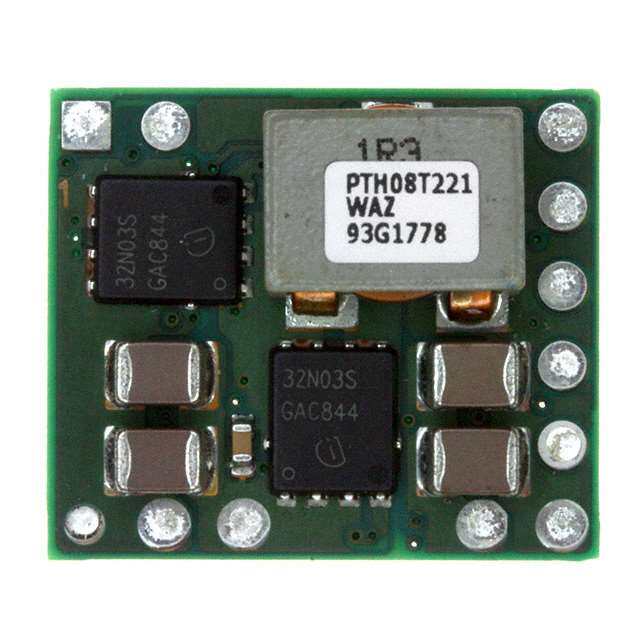

PTH08T221WAZT
RoHS
RoHS compliant
RoHS compliantPackage 11-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.69-5.5V
PDF
/
Buying Options
Total Price: USD $420.76
Unit Price: USD $420.759531
≥1 USD $420.759531
≥10 USD $406.924111
≥25 USD $404.095443
≥50 USD $401.286439
≥100 USD $393.032752
≥500 USD $364.932916
Inventory: 1131
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.25mm
Height 8.5mm
Technical
Isolation Non-Isolated
Min Output Voltage 690mV
Total Power Output-Max 52.8W
Current - Output 1 16A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 5.5V
Output Power 88W
Output Current 16A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 0.69V~5.5V
Max Output Current 16A
Output Voltage 5.5V
Voltage - Input (Max) 14V
Efficiency 95%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 11
Base Part Number TH08T221
Depth 18.93mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 88W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 11
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e1
Size / Dimension 0.87Lx0.75W x 0.36 H 22.1mmx19.1mmx9.1mm
Series PTH04T221W
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 11
Surface Mount YES
Package / Case 11-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 8 Weeks
