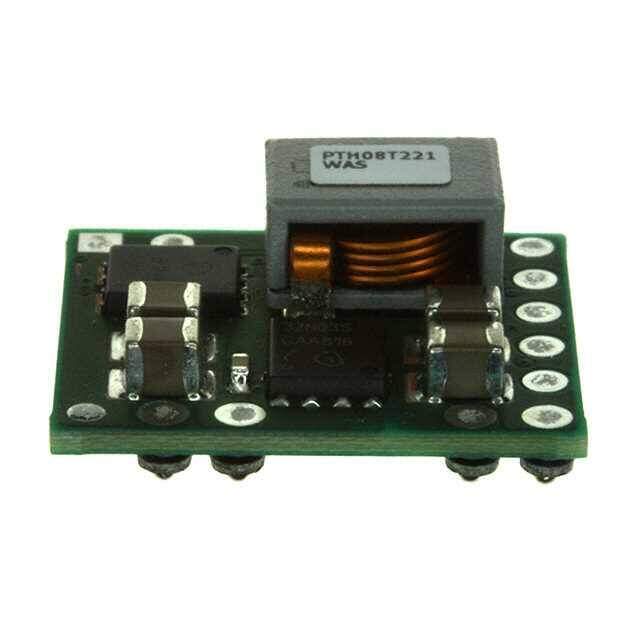

PTH08T221WAS
RoHS
/
Package 11-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP 16A 14VIN 11SMD
PDF
/
Buying Options
Total Price: USD $21.43
Unit Price: USD $21.434707
≥1 USD $21.434707
≥10 USD $20.221421
≥100 USD $19.076808
≥500 USD $17.996997
≥1000 USD $16.978295
Inventory: 1450
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Physical
Mounting Type Surface Mount
Package / Case 11-SMD Module
Surface Mount YES
Number of Pins 11
Weight 5g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH08T221W
Size / Dimension 0.87Lx0.75W x 0.36 H 22.1mmx19.1mmx9.1mm
JESD-609 Code e0
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 11
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Lead (Sn/Pb)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 88W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form BALL
Number of Functions 1
Depth 18.93mm
Base Part Number TH08T221
Pin Count 11
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 95%
Voltage - Input (Max) 14V
Output Voltage 5.5V
Max Output Current 16A
Voltage - Output 1 0.69V~5.5V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 16A
Max Output Voltage 5.5V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 16A
Total Power Output-Max 52.8W
Min Output Voltage 690mV
Isolation Non-Isolated
Dimensions
Height 8.5mm
Thickness 8.25mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
