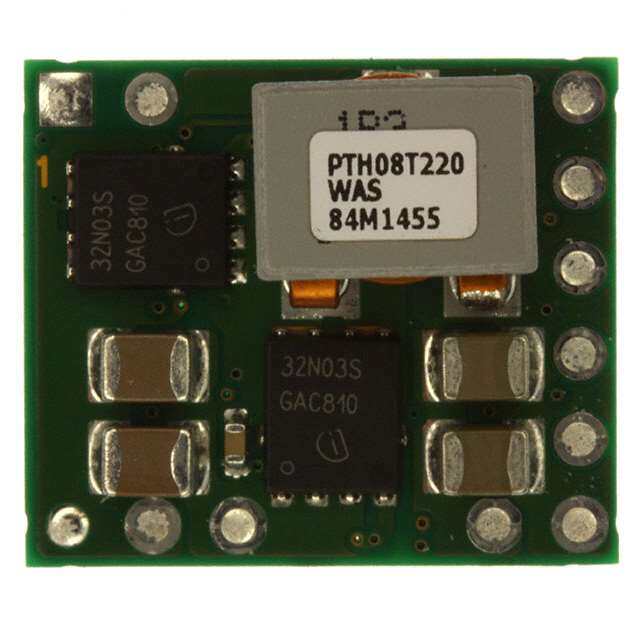

PTH08T220WAST
RoHS
/
Package 11-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 0.69V to 5.5V 16A 11-Pin DIP Module T/R
PDF
/
Buying Options
Total Price: USD $26.73
Unit Price: USD $26.73205
≥1 USD $26.73205
≥10 USD $21.9336
≥100 USD $21.24865
≥500 USD $20.56275
≥1000 USD $19.8778
Inventory: 1187
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 8.25mm
Height 8.5mm
Technical
Isolation Non-Isolated
Min Output Voltage 690mV
Total Power Output-Max 52.8W
Current - Output 1 16A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 5.5V
Output Power 88W
Output Current 16A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 0.69V~5.5V
Max Output Current 16A
Output Voltage 5.5V
Voltage - Input (Max) 14V
Efficiency 95%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 11
Base Part Number TH08T220
Depth 18.93mm
Number of Functions 1
Terminal Form BALL
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 88W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 11
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
Size / Dimension 0.87Lx0.75W x 0.36 H 22.1mmx19.1mmx9.1mm
Series PTH08T220W
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 11
Surface Mount YES
Package / Case 11-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 8 Weeks
